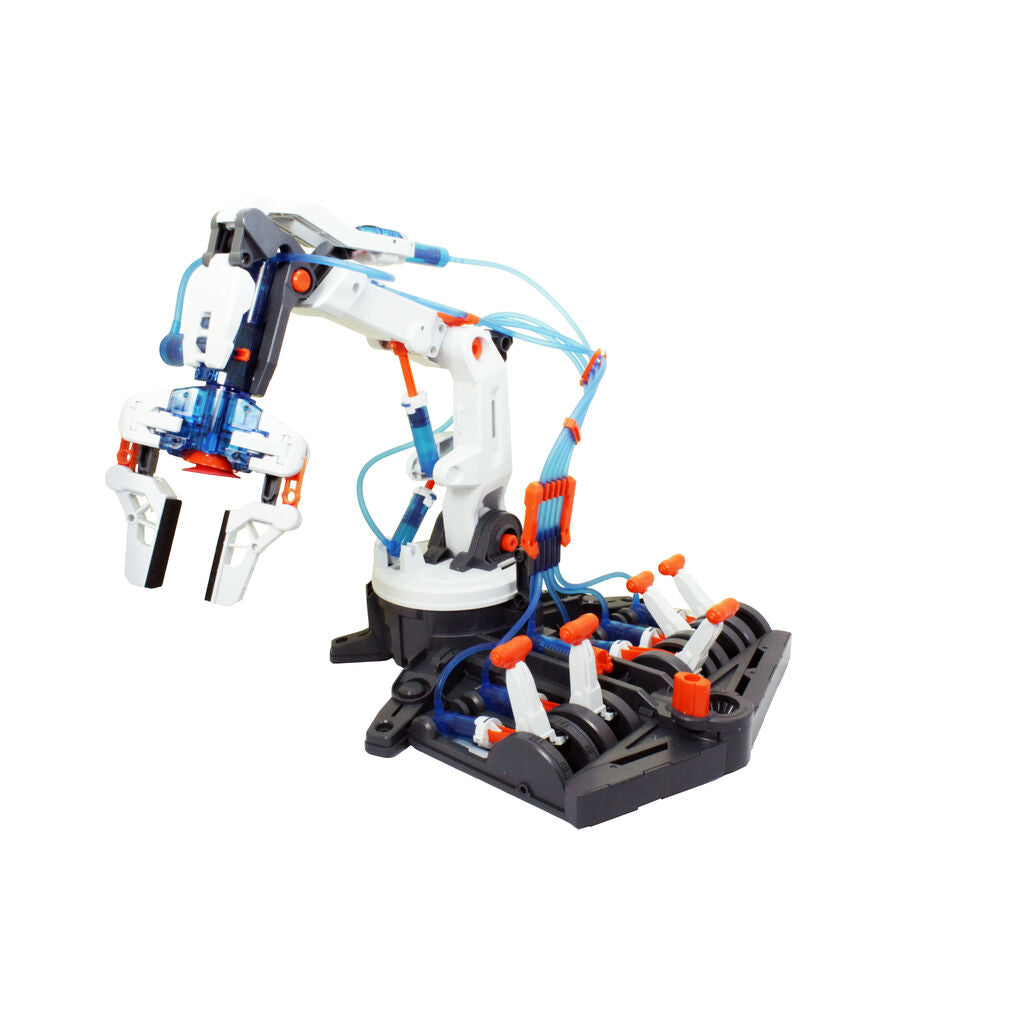

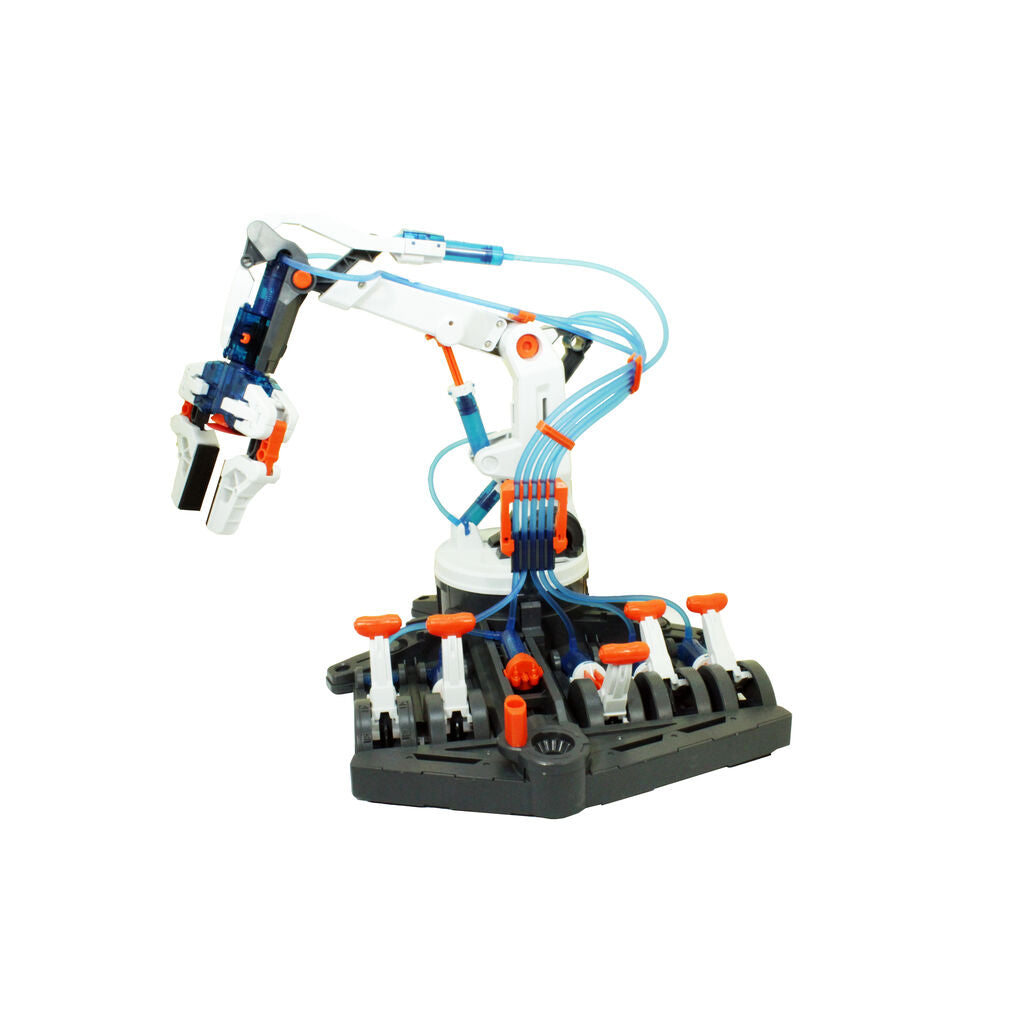

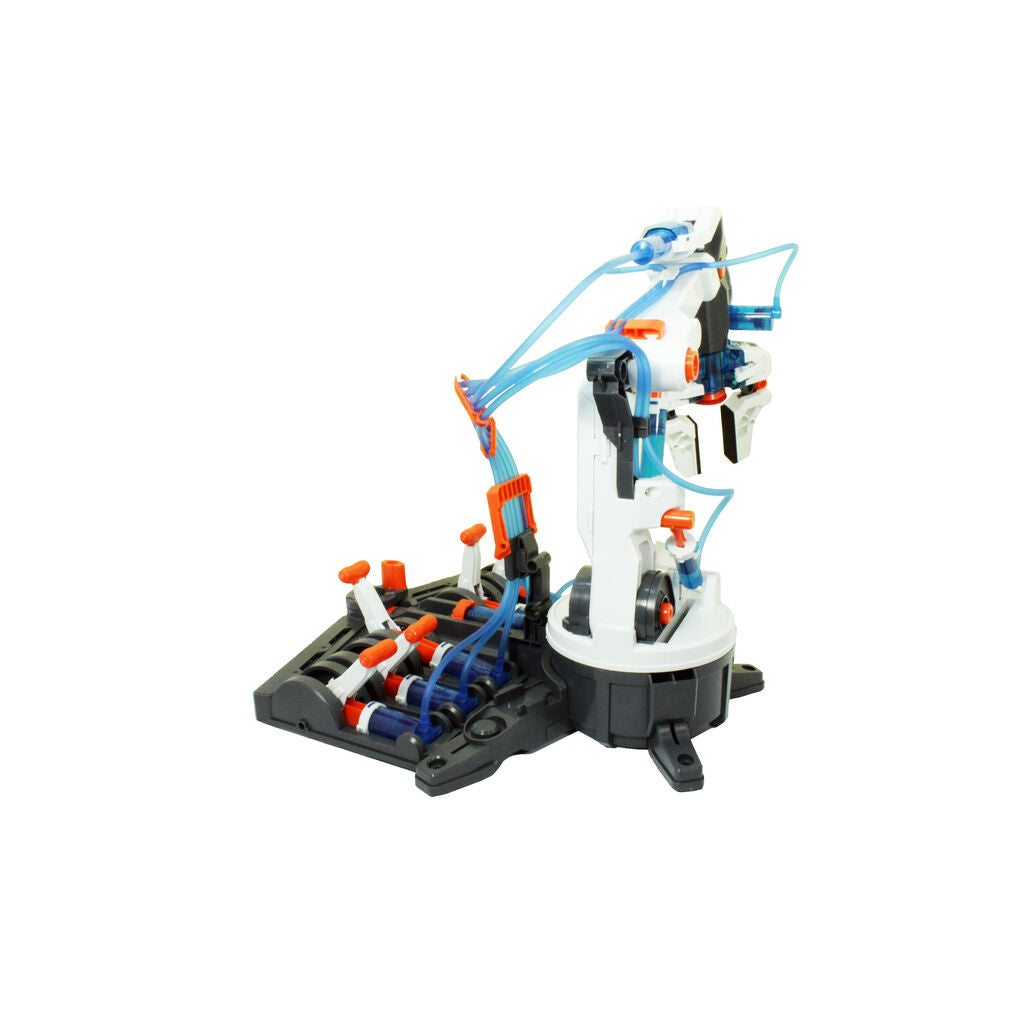

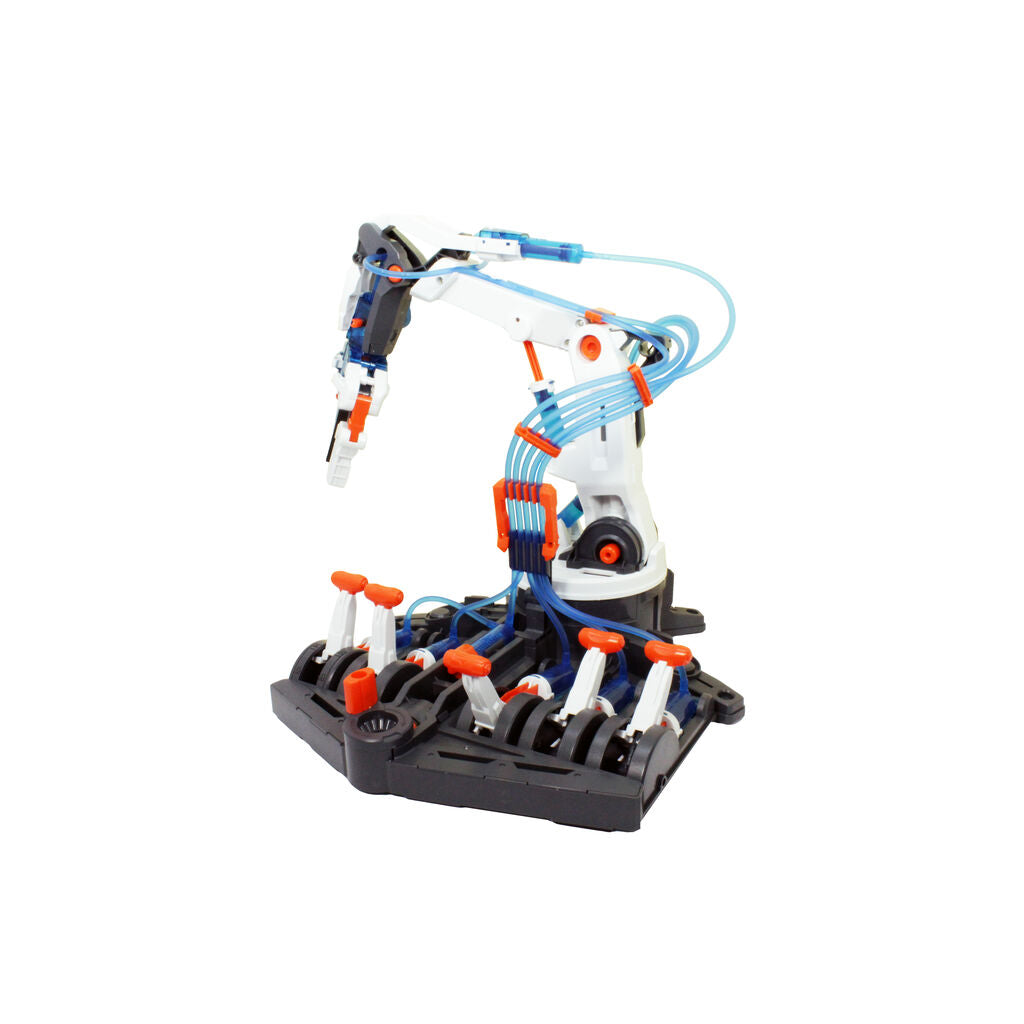

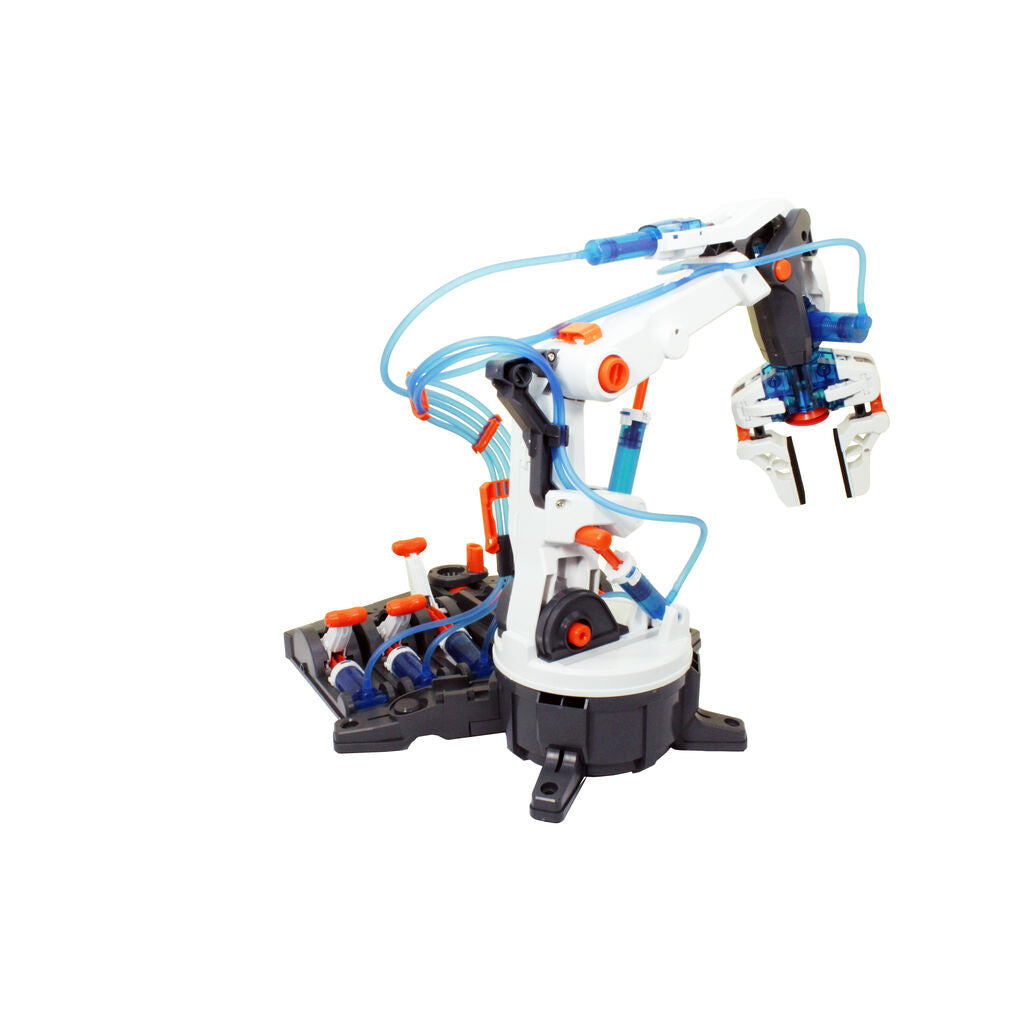

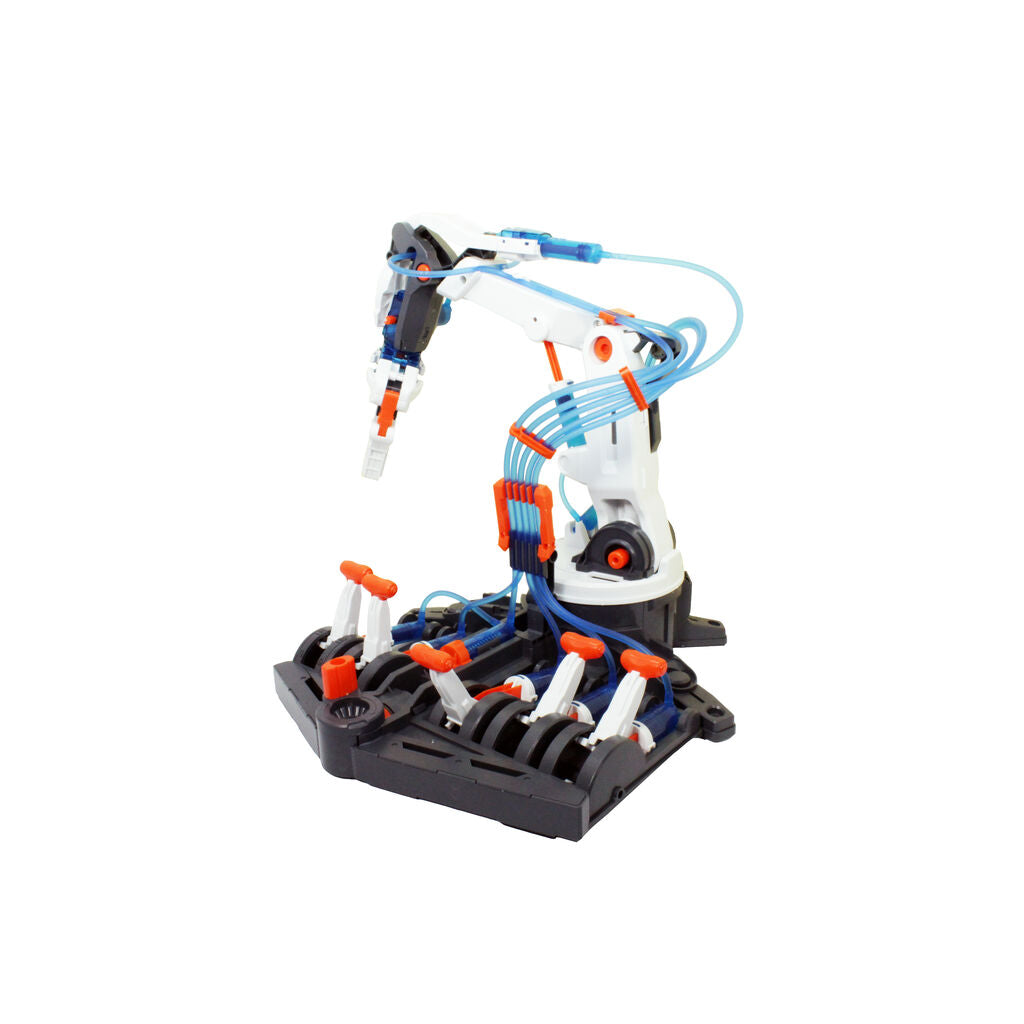

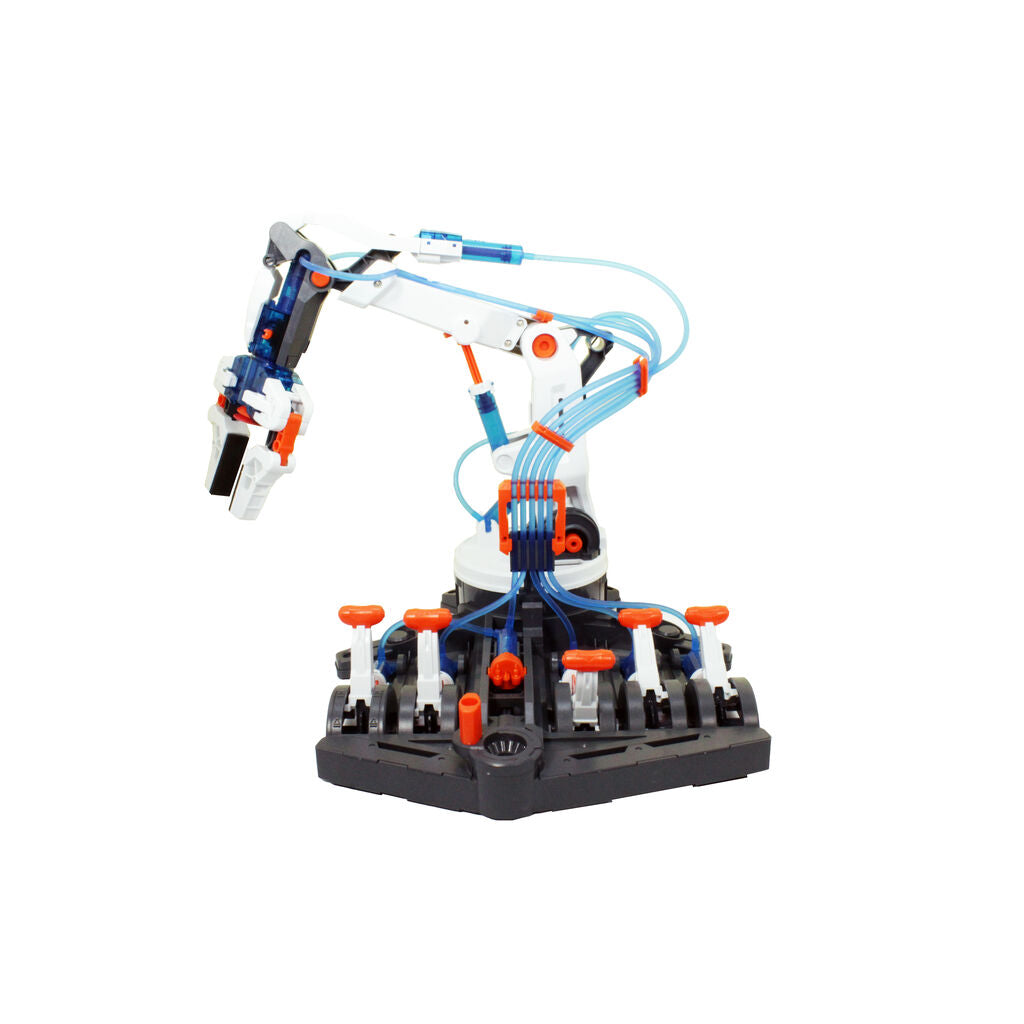

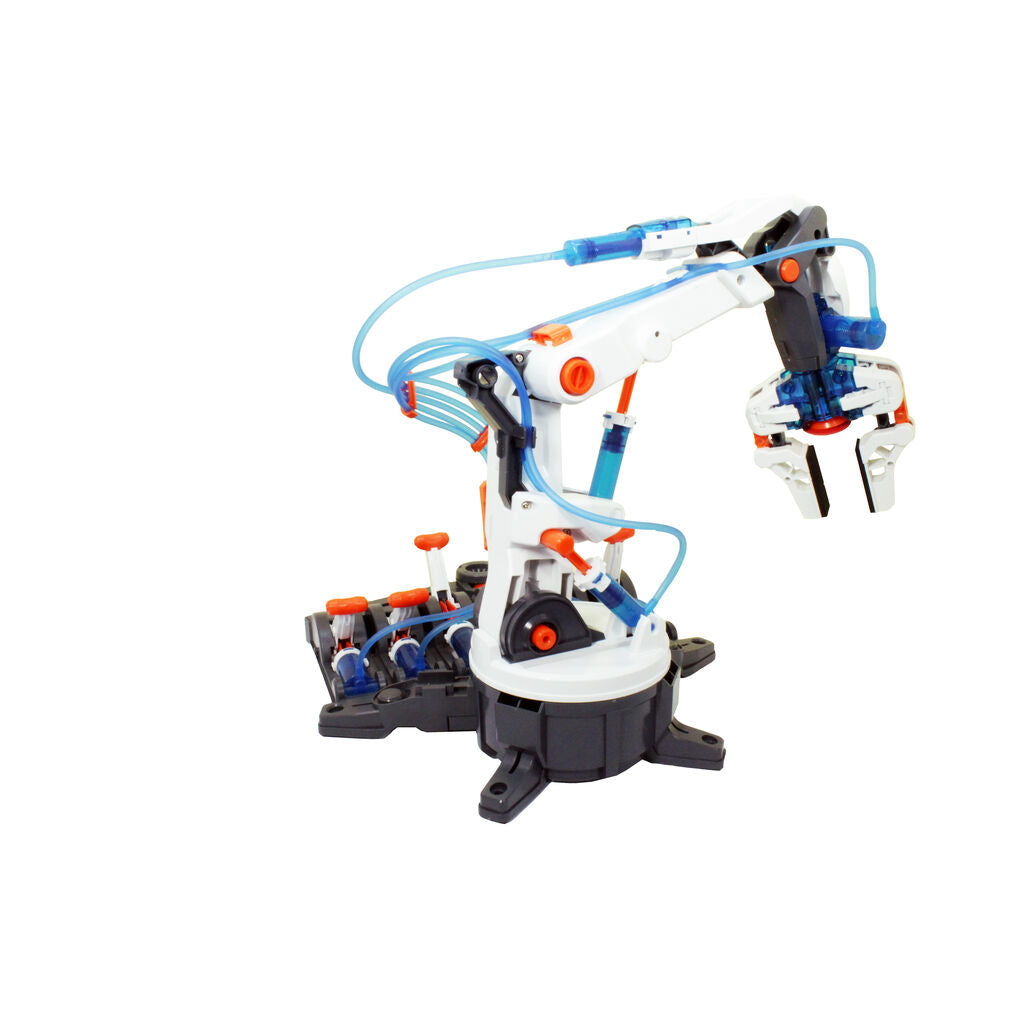

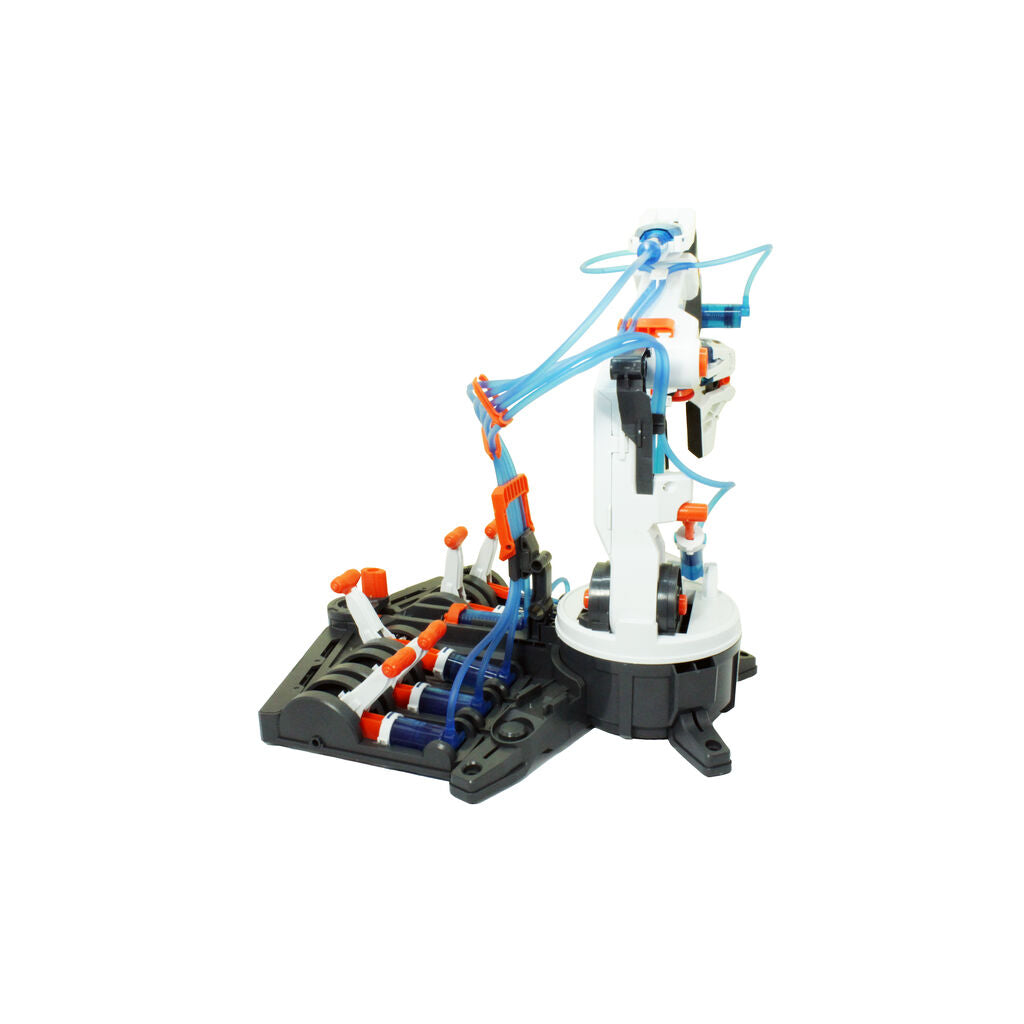

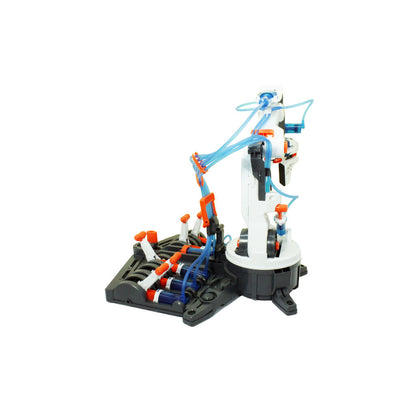

POWERplus Octopus Hydraulic Robot Arm Kit

Build Your Own Hydraulic Robot Arm

The POWERplus Junior Octopus is a DIY STEM construction kit that allows users to build a fully functional robotic arm. It provides a hands-on experience in assembling and controlling a multi-axis mechanical system.

Water Powered Hydraulic System

The arm operates using water hydraulics. After filling the system with clean water, pressure is applied through control levers to move different parts of the arm without the need for batteries or motors.

How the Model Works

The system uses interconnected cylinders and tubes filled with water. When a control lever is pressed, water pressure transfers force to another part of the system, enabling smooth and controlled movement.

6-Axis Movement Control

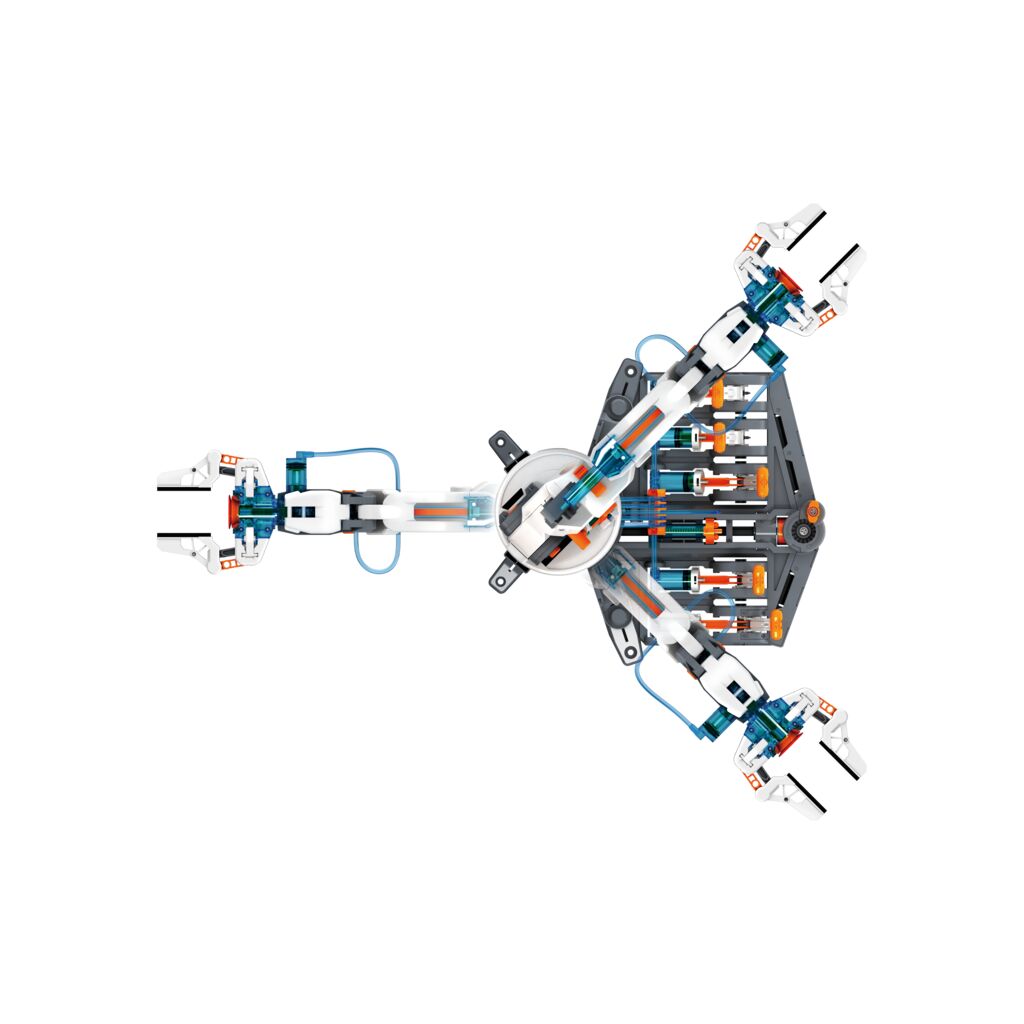

The robotic arm offers movement across six axes, including base rotation, arm lifting, wrist movement, and gripper control. This allows a wide range of motion similar to basic industrial robotic arms.

Functional Gripper and Suction Cup

The model includes two interchangeable end tools: a gripper for lifting small objects and a suction cup for handling flat surfaces. The arm can lift items up to approximately 50 grams.

STEM Learning Through Practice

This kit introduces core concepts such as hydraulics, pressure, force, and mechanical control systems. It supports hands-on learning through building and operation.

Skill Development

Assembly and use help develop fine motor skills, coordination, logical thinking, and problem-solving abilities. It also encourages interest in engineering and robotics.

Key Highlights

• DIY hydraulic robot arm model
• Powered by water (no batteries required)
• 6-axis movement control system
• Includes gripper and suction cup tools
• Lifts objects up to approx. 50g
• STEM educational construction kit
• Demonstrates pressure and force principles
• Suitable for ages 10+

Complete Set Includes

• Robot arm construction components
• Hydraulic cylinders, tubes, and connectors
• Interchangeable tools (gripper and suction cup)
• Step-by-step illustrated instructions

Tools Required (Not Included)

• Small screwdriver
• Scissors or pliers
• Clean water for hydraulic system

Easy Assembly

The kit includes detailed instructions for guided assembly. Adult supervision is recommended during initial setup and hydraulic filling.

Usage & Safety Notes

• Use clean water only in the system
• Minor leakage may occur during operation
• Contains small parts; not suitable for children under 3
• Use on easy-to-clean surfaces
• Adult supervision recommended

Product Details

• Brand: POWERplus
• Series: Junior
• Model: Octopus Hydraulic Arm
• Toy Type: DIY STEM Construction Kit
• Power Source: Hydraulic (water-based)
• Control: Manual lever system
• Movement Axes: 6
• Load Capacity: Up to 50g
• Material: Plastic
• Recommended Age: 10+
