Accessory Set for 12V/24V POWERplus Azor Battery

Do you need to power or charge many devices from one 12V or 24V battery? The DC POWERplus Azor adapter set is a versatile and practical solution for a car, camping, boat or off-grid application!

This useful kit allows you to transform a single DC power source (e.g. a car battery) into a multi-port power station for devices requiring 12V-24V DC voltage (like from a cigarette lighter socket) and standard 5V USB voltage for charging phones, tablets and other gadgets.

Note: This is a DC-DC power adapter/splitter, not an inverter (voltage converter). It does not convert voltage to 230V AC (standard wall socket).

Main Benefits of the Azor Adapter:

• Powering multiple devices simultaneously: Allows you to connect up to 6 devices (2x DC + 4x USB) to one battery.
• Input voltage universality: Works seamlessly with both 12V and 24V batteries.
• Various output ports: Offers 2 car cigarette lighter sockets (12-24V DC) and 4 USB ports (5V).
• Ideal in the field: Indispensable when traveling, camping, on a boat, in a camper or in mobile work.
• Smart USB Charging: Built-in chip optimizes charging current for connected USB devices (dedicated ports for Apple and other brands).
• Safe in use: Equipped with a self-resetting fuse to protect against overload.

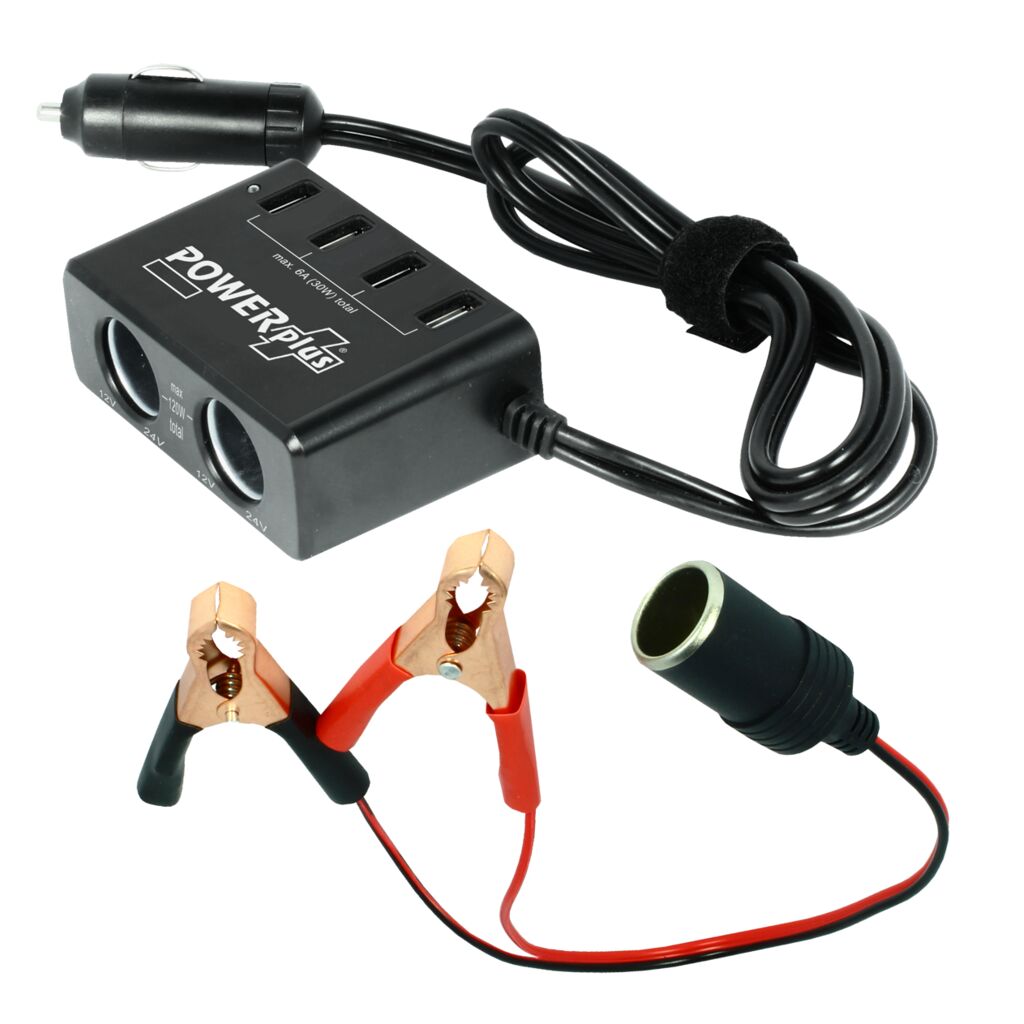

Building the Set:

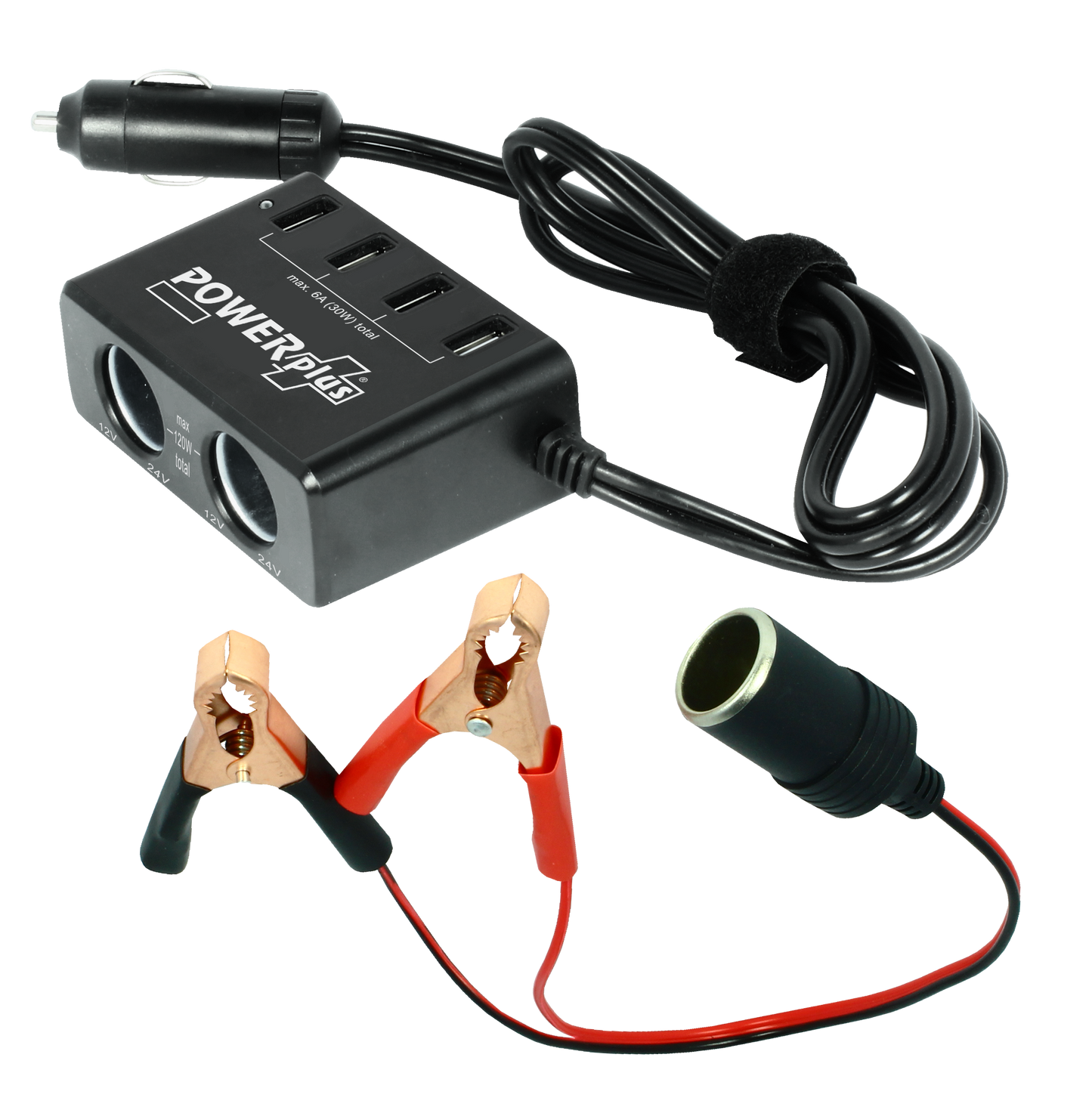

The POWERplus Azor set consists of two main parts:

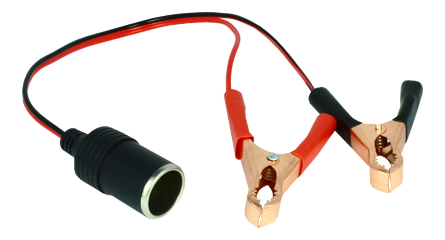

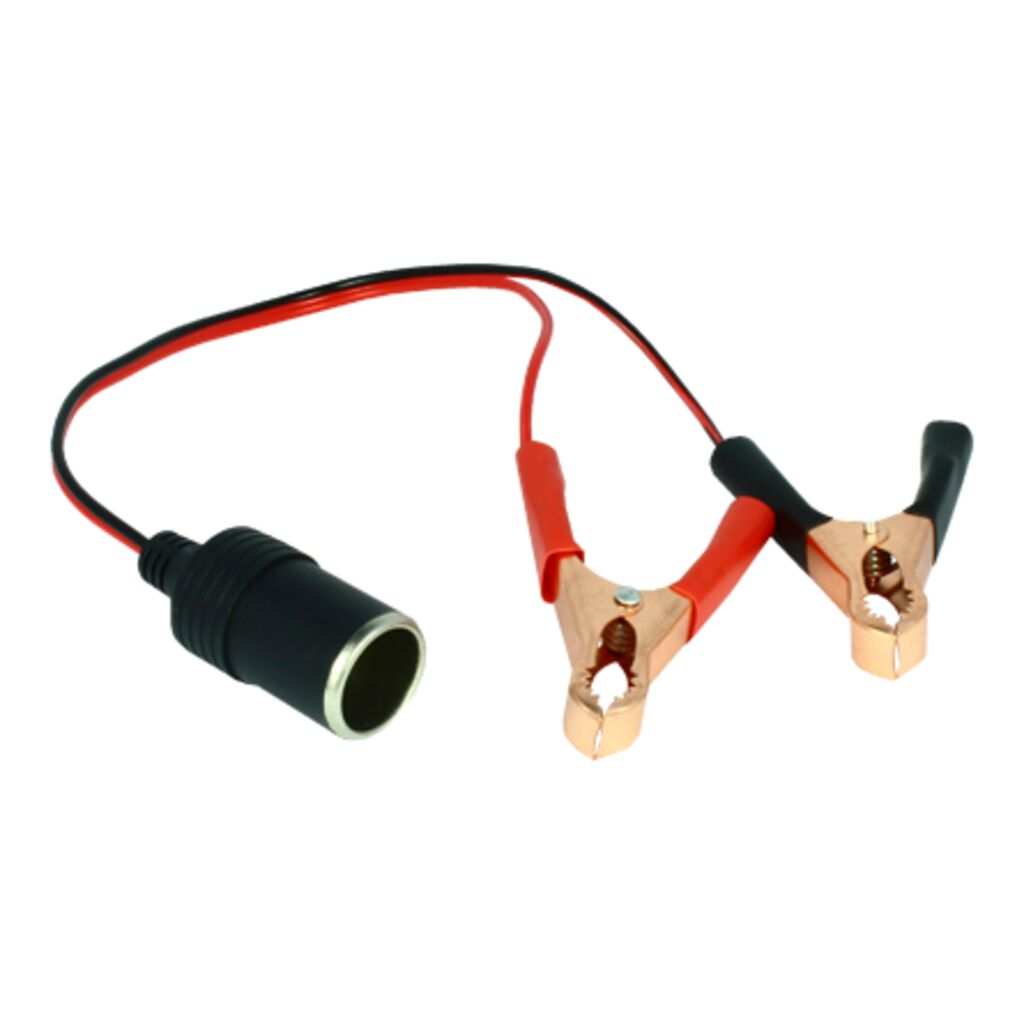

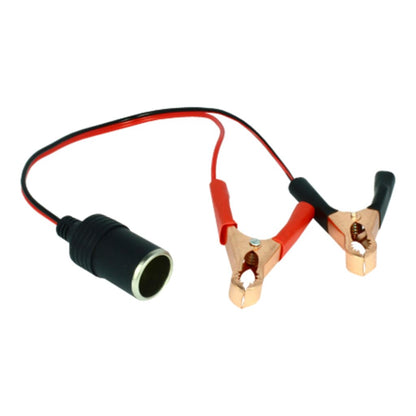

• Cable set: Cables with clamps for connecting directly to the battery poles (+/-) and a car cigarette lighter socket at the other end.

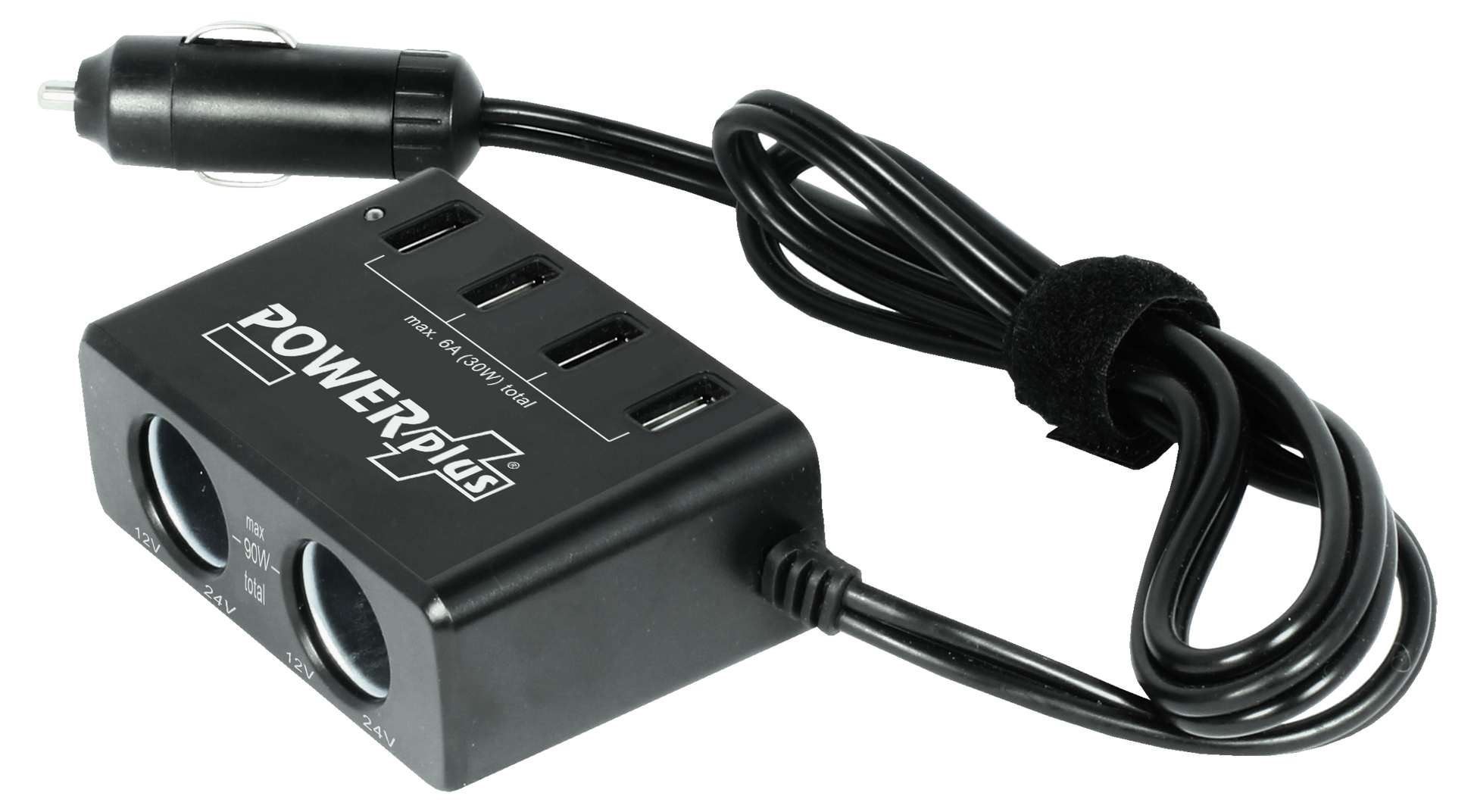

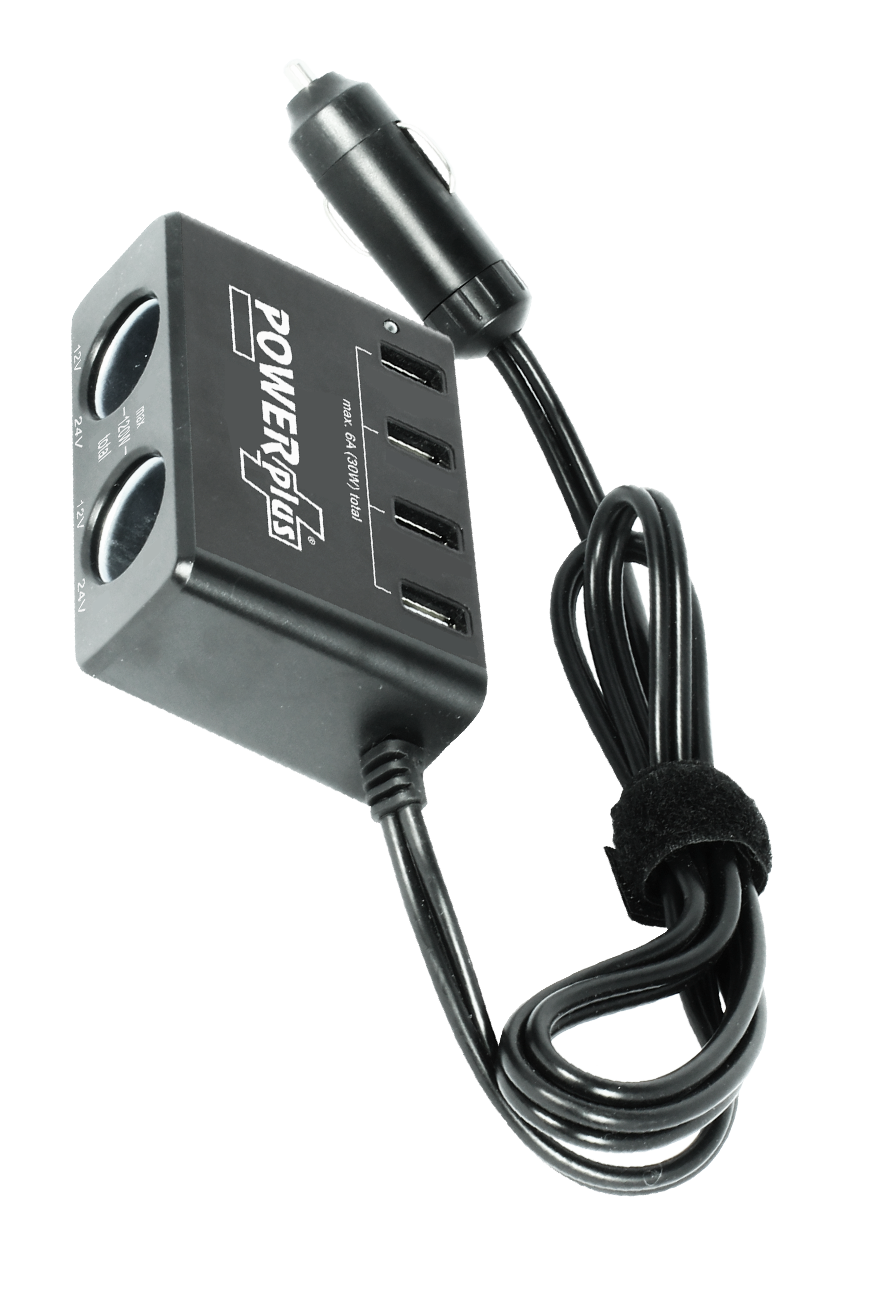

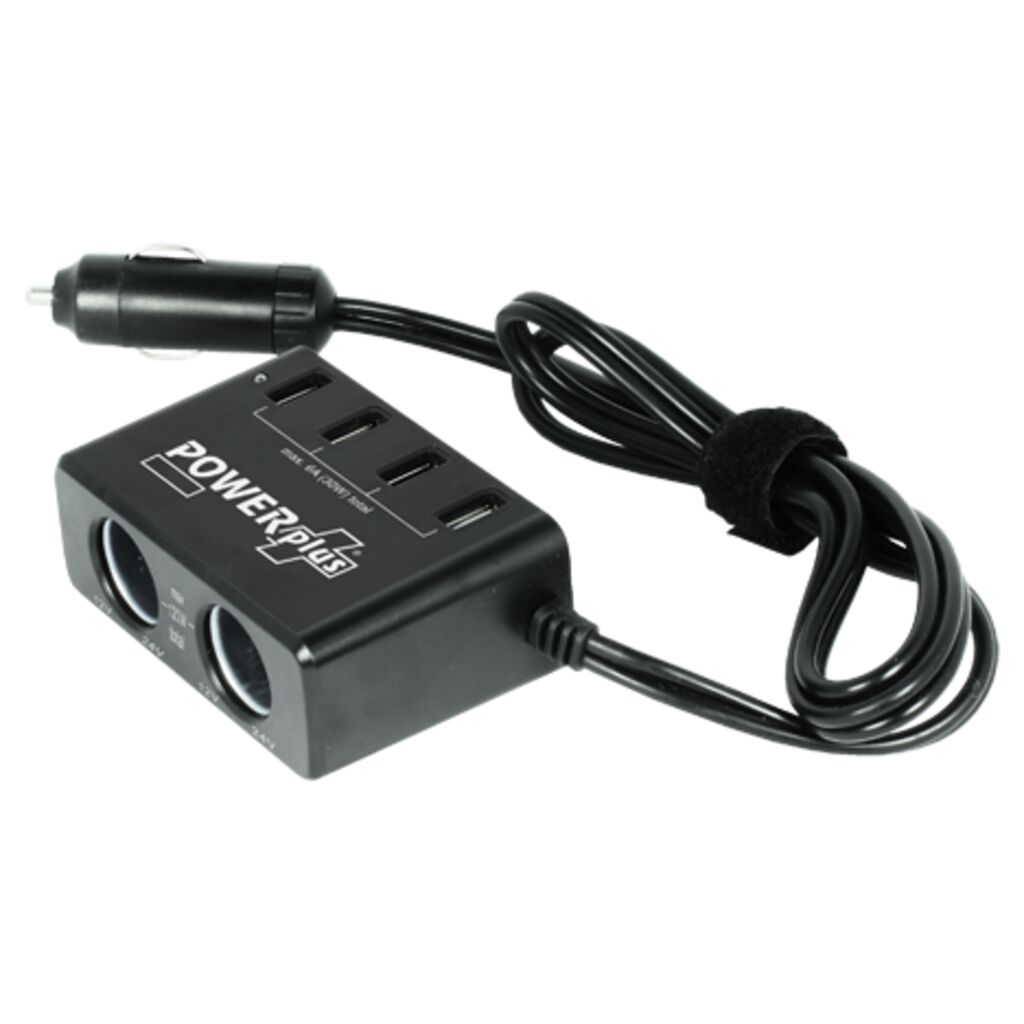

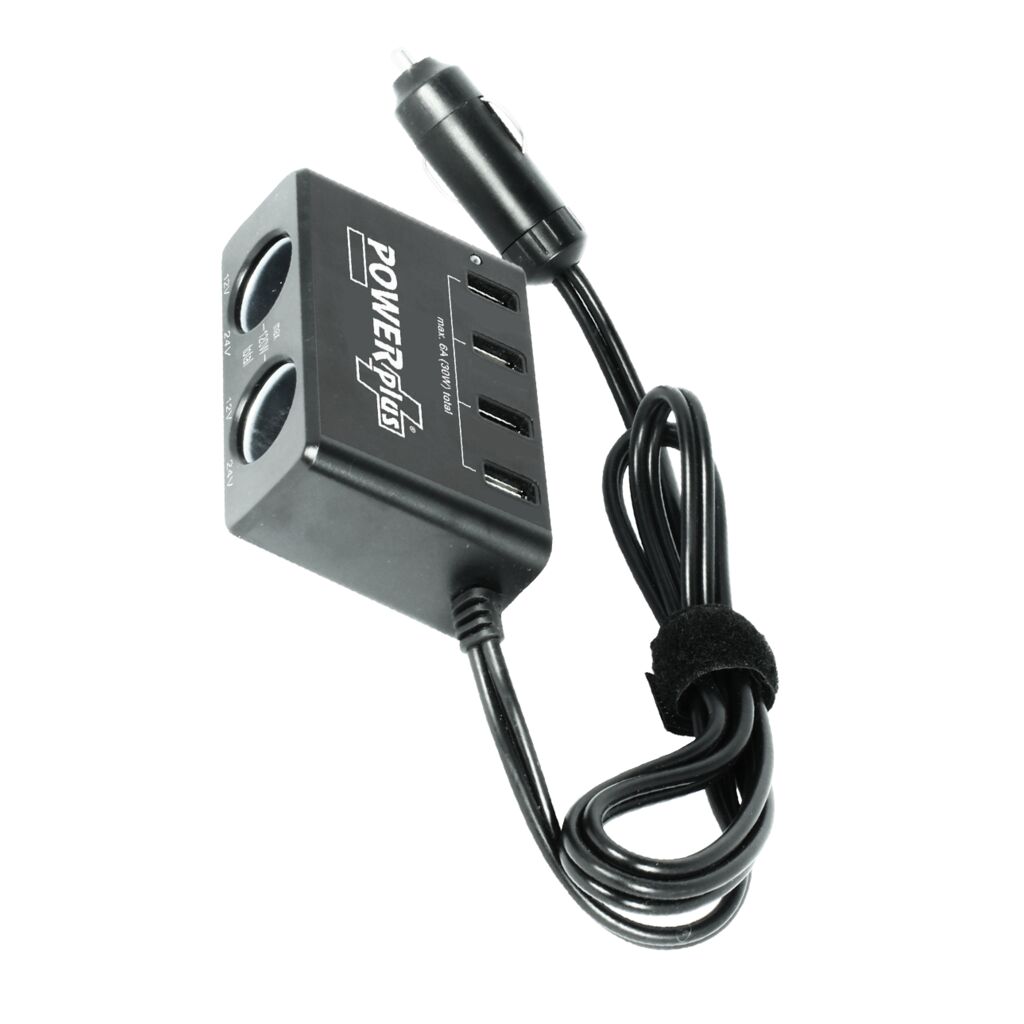

• Main module (Adapter/Splitter): It has a cigarette lighter plug (connected to the cable set), two cigarette lighter output sockets (12-24V DC) and four USB output ports (5V).

Simple Operation - Step by Step:

1. Connect the cable set to the battery, paying particular attention to the correct polarity: red terminal (terminal) to the positive pole (+), black terminal to the negative pole (-). Incorrect connection may damage the device!
2. Connect the main module of the adapter to the cigarette lighter socket on the cable set.
3. The blue LED on the main module will illuminate to indicate that the device is ready for operation.
4. Connect your devices (car chargers, navigations, phones, tablets, etc.) to the appropriate DC sockets or USB ports on the main module.

Power and Charging Capabilities:

• DC outputs (cigarette lighter sockets): 2 ports. The output voltage on these sockets is the same as the input voltage (if you connect to a 12V battery, the output will be 12V; if 24V -> 24V). The maximum total load for both sockets together is 90W. Make sure that the devices you connect are compatible with the voltage of your battery!
• USB outputs: 4 ports. Output voltage 5V. The maximum total load for all four ports together is 6A (equivalent to 30W).
• Smart USB: The system optimizes the charging current. The manufacturer recommends using white USB ports for Apple devices (iPhone/iPad) and black ports for other brands to ensure the best charging compatibility.

Technical Specification:

• Input: DC 12V - 24V (from the battery via terminals)
• DC output (2x cigarette lighter socket): DC 12V-24V (such as input voltage), max. 90W total
• USB output (4x port): 5V DC, max. 6A total (30W)
• USB features: Smart IC (current optimization), dedicated ports for Apple (white) / Other (black)
• Fuse: Built-in, self-resetting
• Operating indicator: Blue LED

A must-have gadget for anyone who needs reliable power while traveling or off-grid! Order the POWERplus Azor adapter and enjoy the ability to charge and power multiple devices at the same time, wherever you are.
