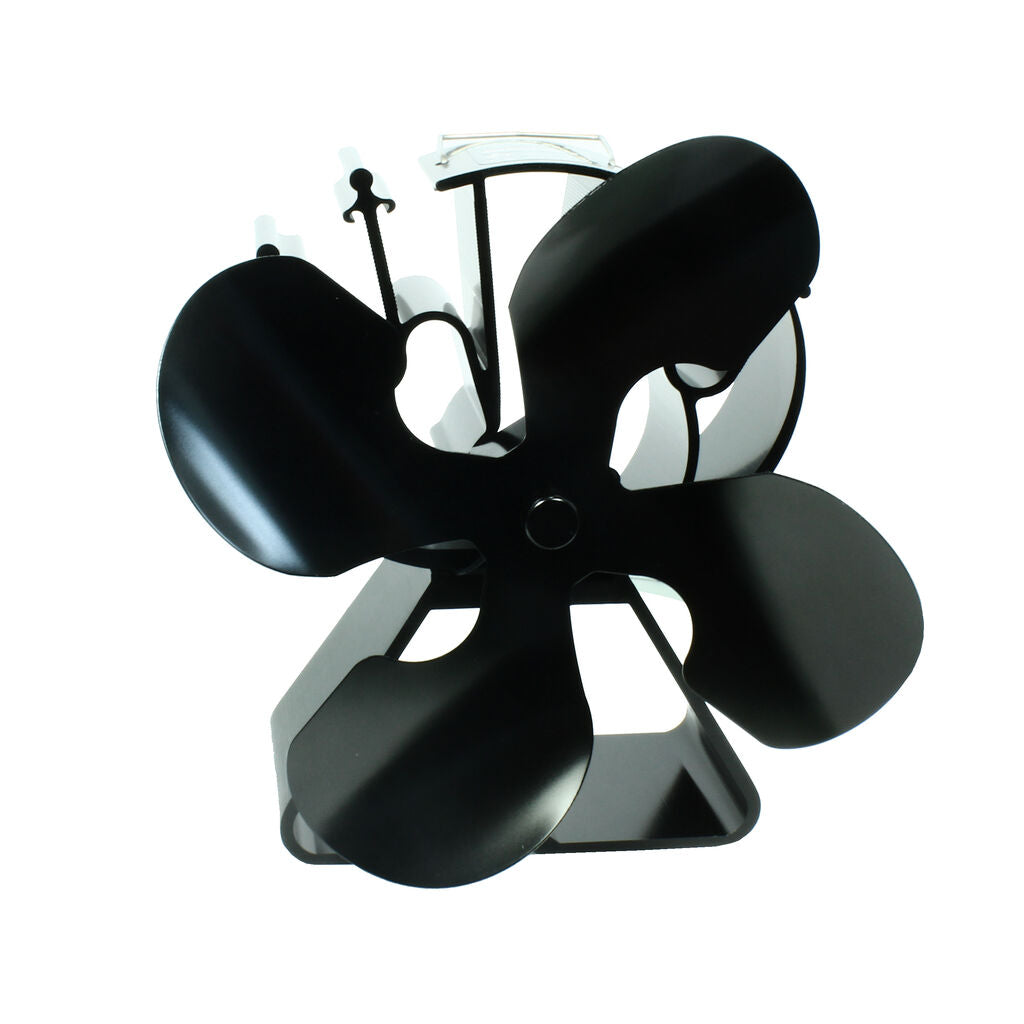

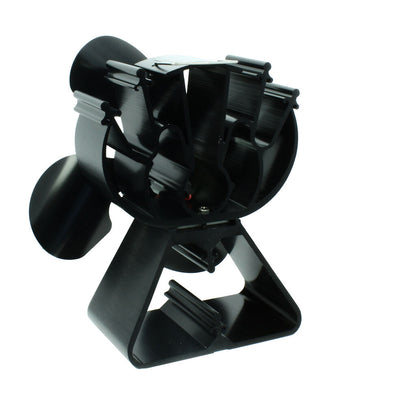

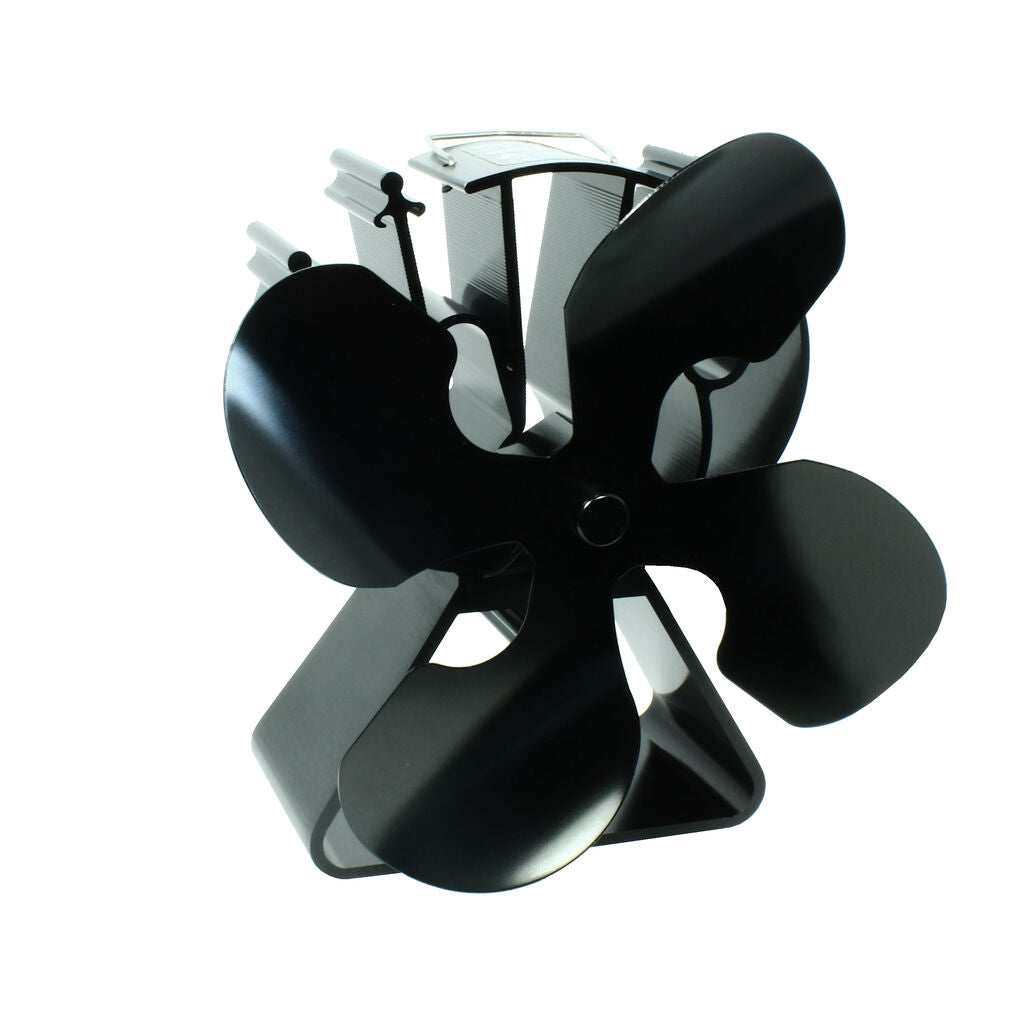

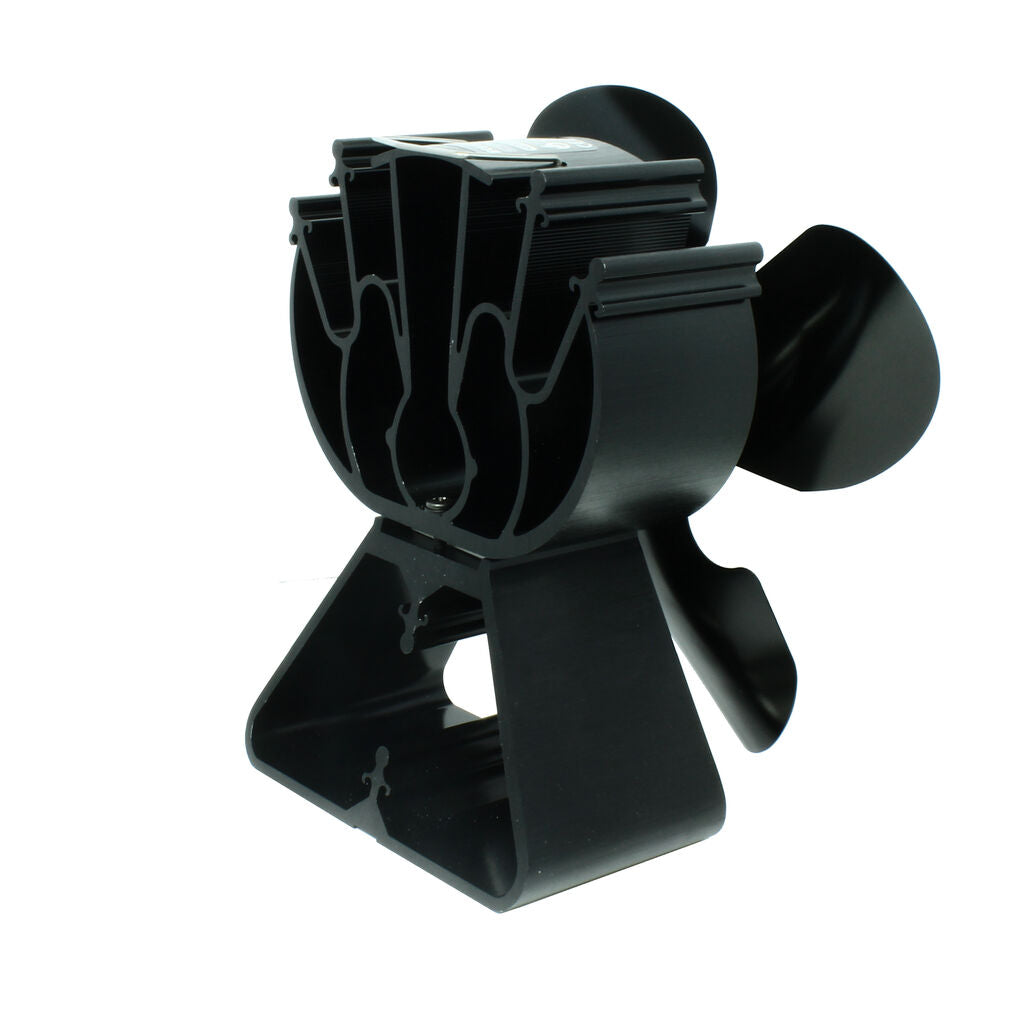

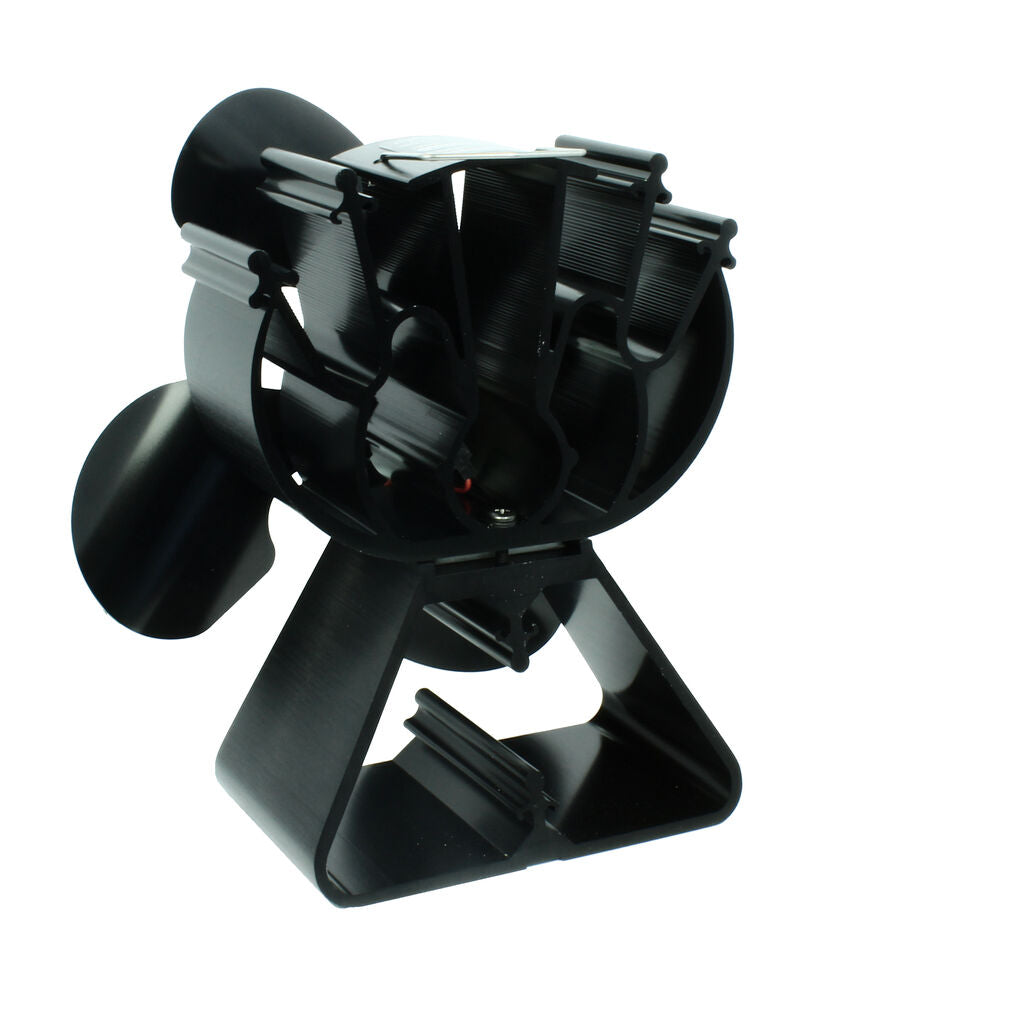

Basic EcoSavers Fireplace Fan for a Stove Without Power

Distribute the heat from your stove more effectively and save on fuel! The EcoSavers® Stove Fan Basic fireplace fan is a simple and clever device that works without electricity or batteries, using only the heat of your stove.

This fan has been developed for wood-burning, gas or other free-standing stoves. Just place it on the hot upper plate of the stove. When the fan base reaches a temperature of minimum 60°C, the built-in Peltier module will start generating electricity, which will drive a quiet, 4-blade propeller. The fan will start working automatically, gently blowing warm air from above the stove into the room.

Main Benefits of the EcoSavers® Stove Fan Basic Fireplace Fan:

• Fuel Savings: Thanks to better heat distribution (air flow up to 130 CFM / ~220 m³/h), the room heats up faster and more evenly, which allows you to reduce the amount of wood or other fuel burned.
• Increased Thermal Comfort: Warm air is more efficiently distributed throughout the room, instead of rising to the ceiling.
• Zero Operating Costs: Works without electricity and batteries, using only the temperature difference thanks to the Peltier module.
• Automatic Operation: The fan starts automatically at 60°C and stops when the stove cools down. The rotation speed adjusts to the temperature.
• Extremely Quiet Operation: The noise level is very low (less than 25 dB).
• Safety of use: It has a built-in thermal protection - a special metal spring in the base slightly raises the fan when the temperature exceeds approx. 345-350°C.
• High Quality Materials: Made of high-quality anodized aluminum.
• Free Fireplace Thermometer: The set includes a practical fireplace thermometer with a magnetic base.

How does a Heat Powered Fan (Peltier Module) Work?

The secret lies in thethermoelectric (Peltier) moduleplaced in the base of the fan. When the base is hot (from the stove) and the upper part with the heat sink remains cooler, a temperature difference arises. The Peltier module uses this difference to generate an electrical voltage. The generated electricity powers a small electric motor that turns a 4-blade propeller. The greater the temperature difference, the faster the fan rotates.

Usage and Safety Instructions:

• Before first use, gently rotate the paddles by hand to check that they rotate freely.
• Always place the fan on a flat, stable surface, at the back of the top plate of the stove.
• Do not move the fan when it is hot - use the handle and protective gloves.
• The product is intended for indoor use only, in dry conditions.
• Do not cover the fan blades during operation.
• Keep the fan out of the reach of children.

Technical Specification:

• Type: Heat-powered fireplace fan (thermoelectric)
• Brand: EcoSavers®
• Model: Stove Fan Basic
• Power supply: Peltier module (no batteries or electricity required)
• Starting temperature: 60°C (minimum base temperature)
• Maximum operating temperature: 345°C (has thermal protection)
• Air flow: Up to 130 CFM (approx. 220 m³/h)
• Noise level: Very low (< 25 dB)
• Material: Anodized aluminum
• Propeller design: 4 blades
• Color: Black (anodized)
• Dimensions (H x W x D): 21 x 20.5 x 10 cm
• Weight: 0.9 kg
• Addition: Free fireplace thermometer with a magnet

Enjoy pleasant warmth throughout the house and save on fuel! Order the EcoSavers® Stove Fan Basic - a simple, quiet and maintenance-free way to increase the efficiency of your stove.
