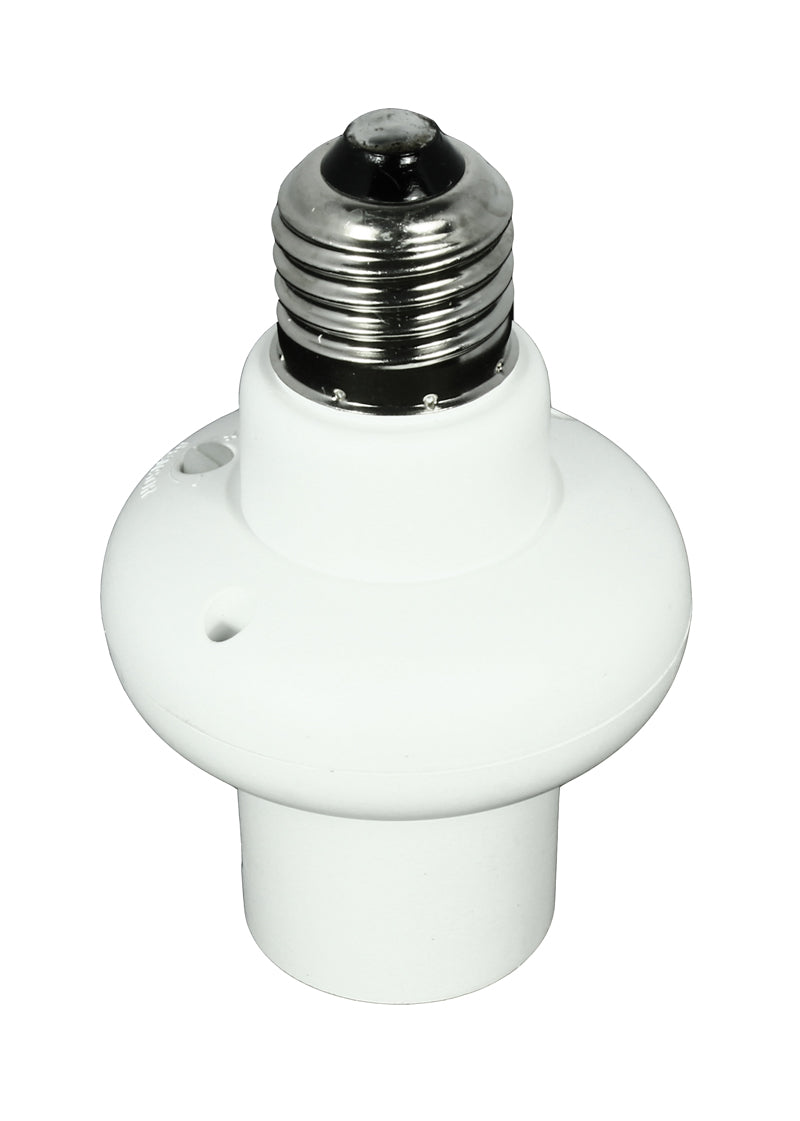

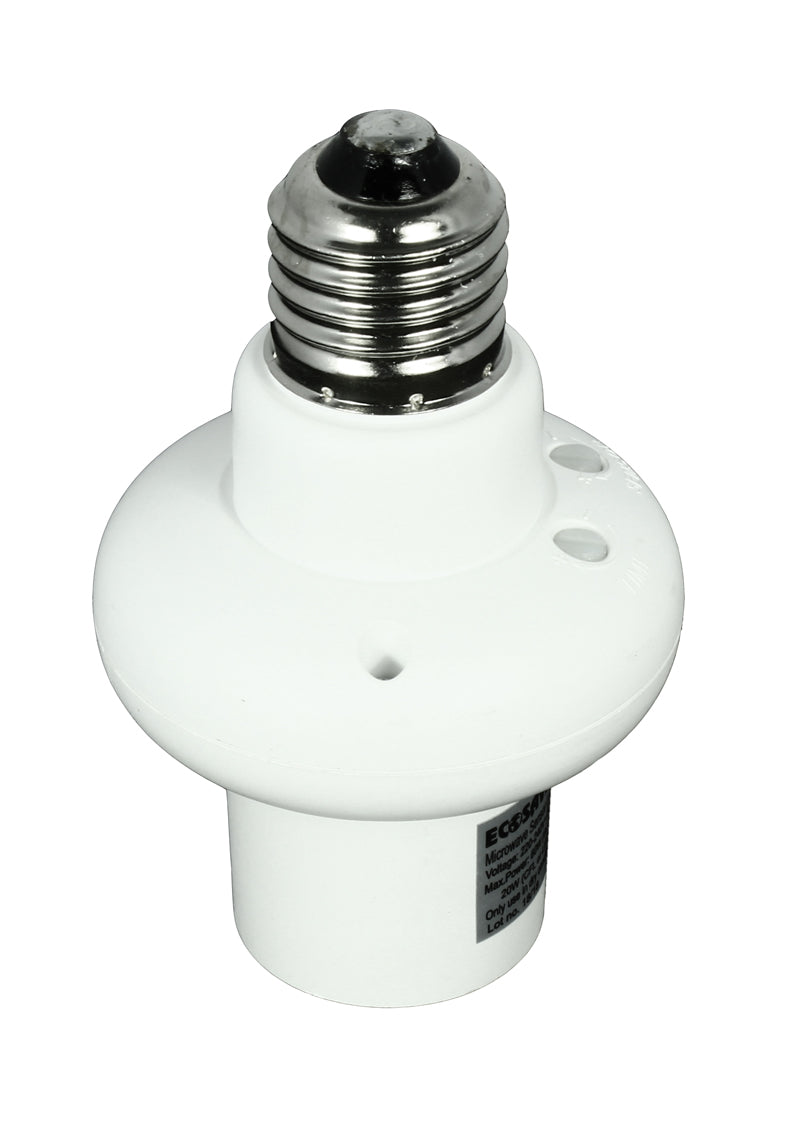

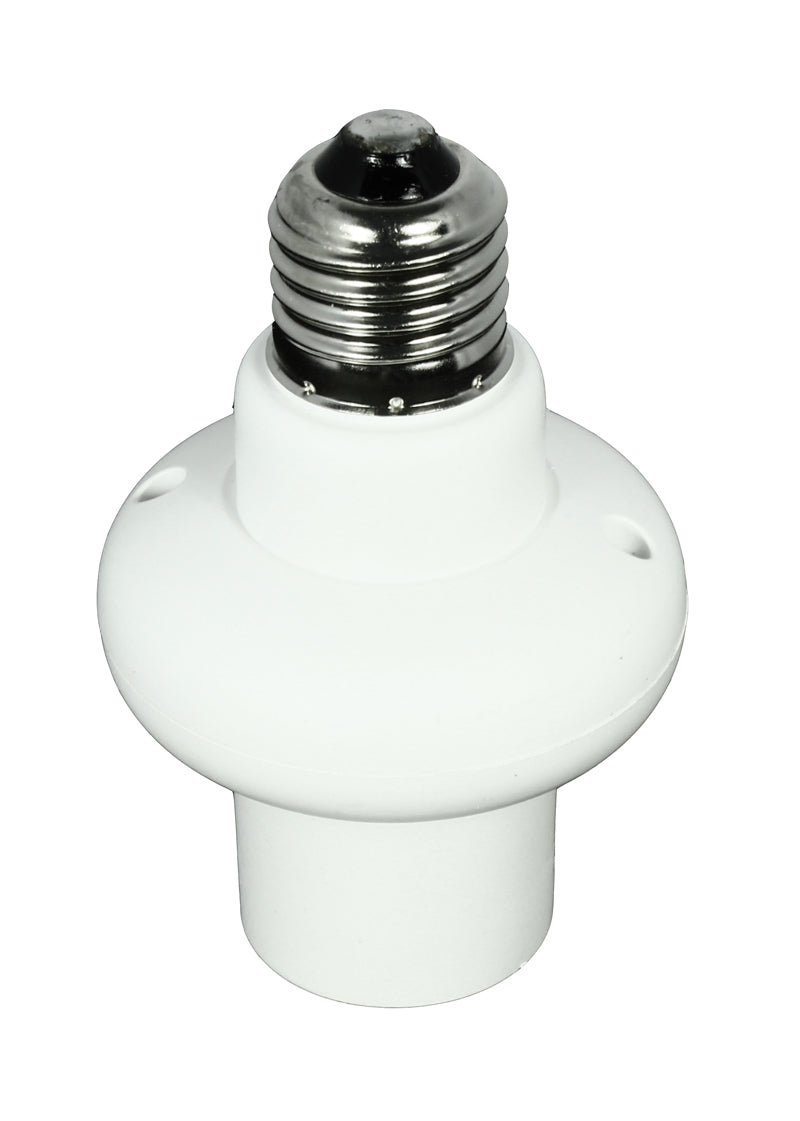

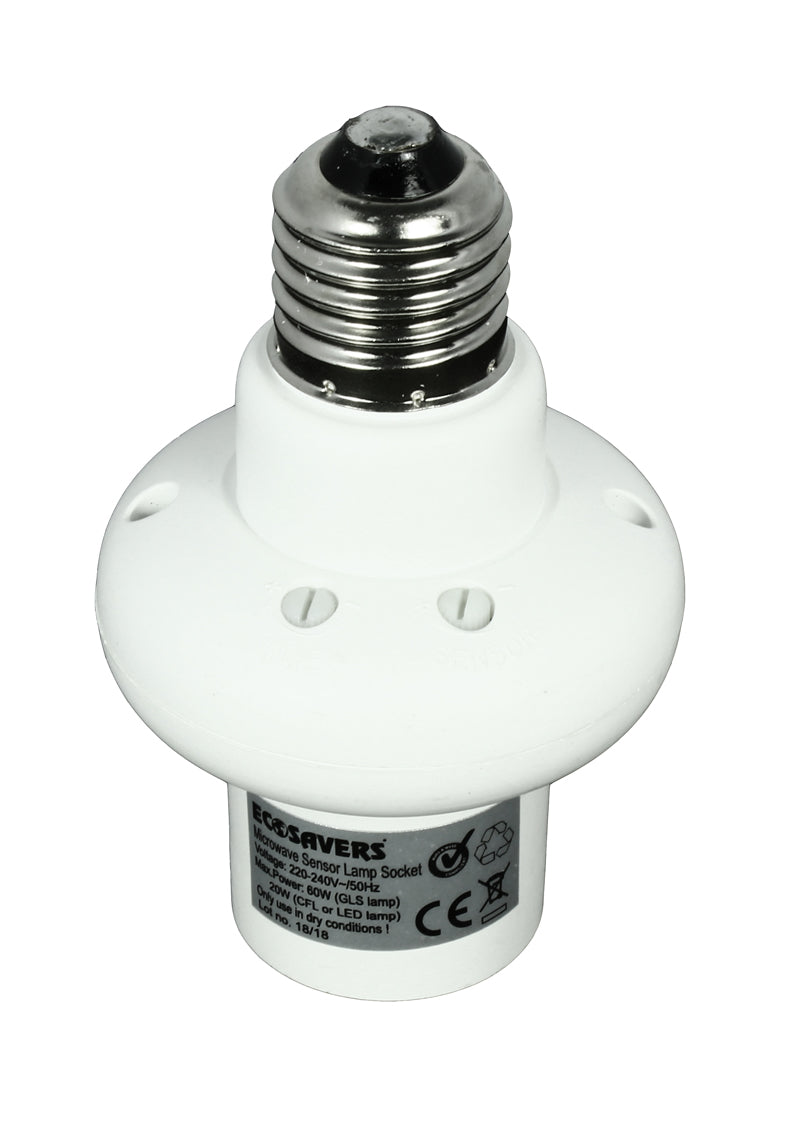

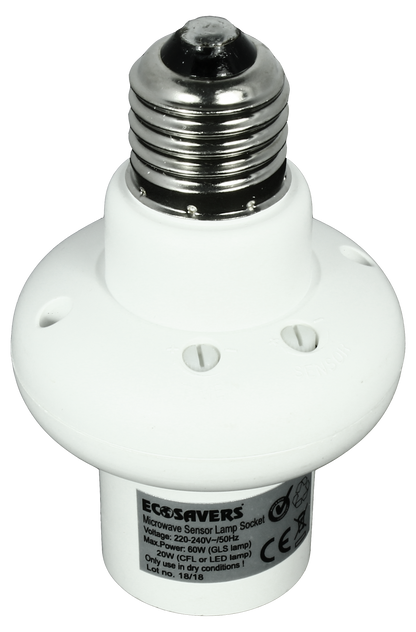

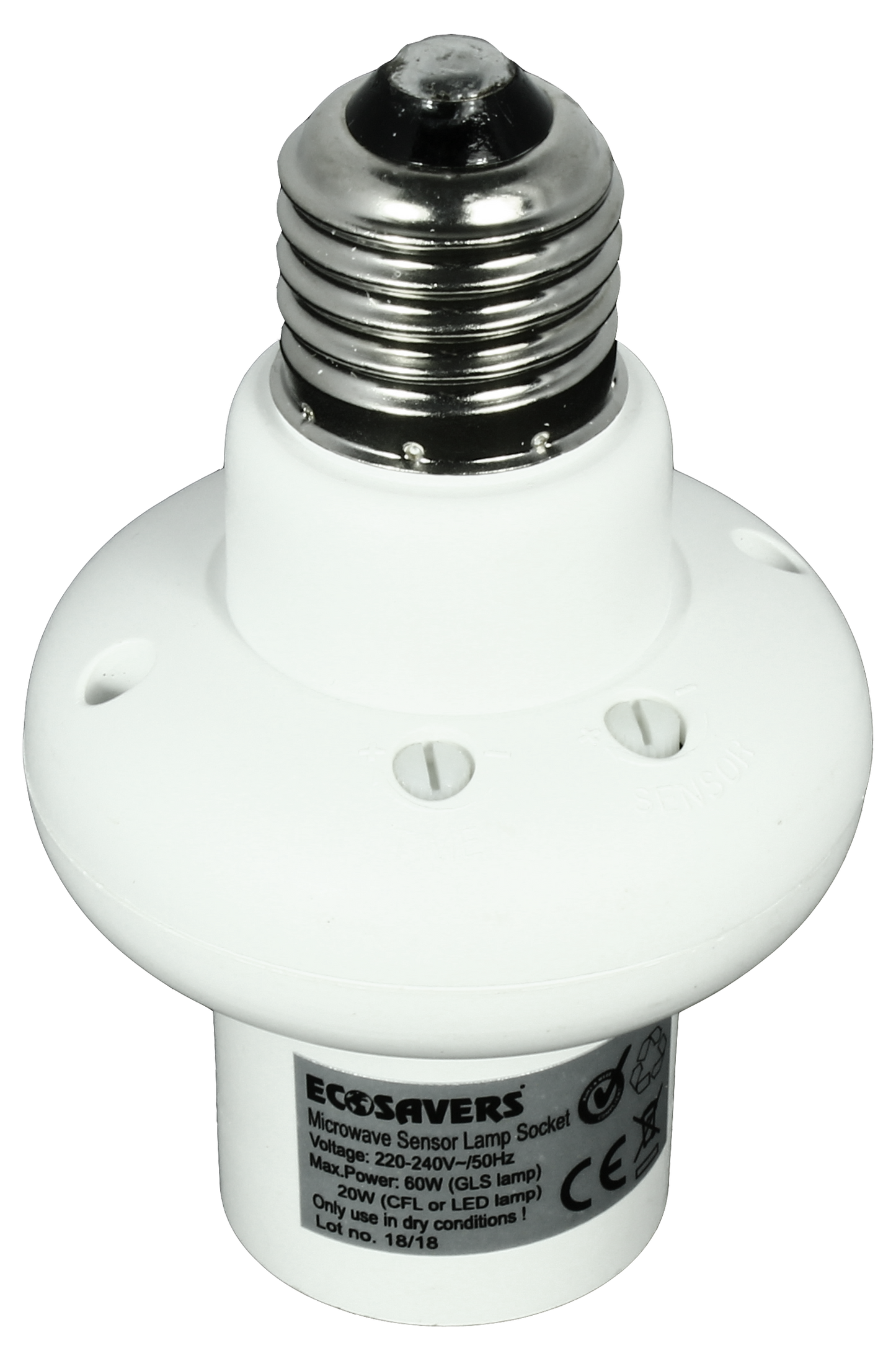

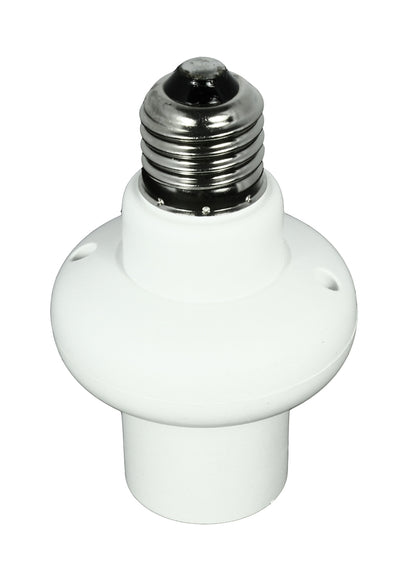

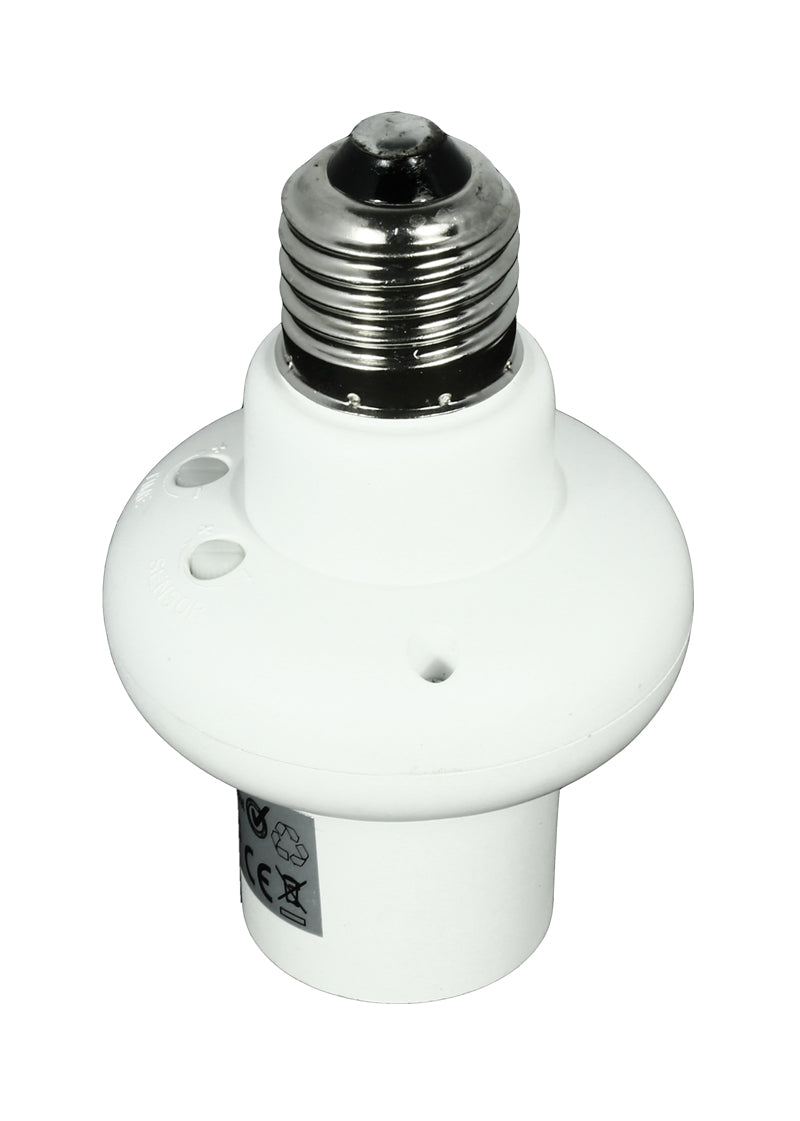

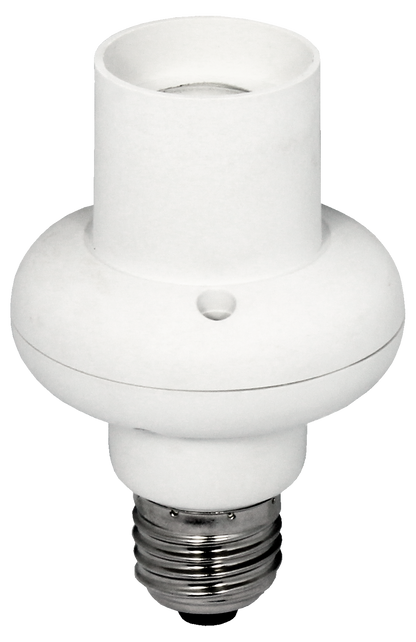

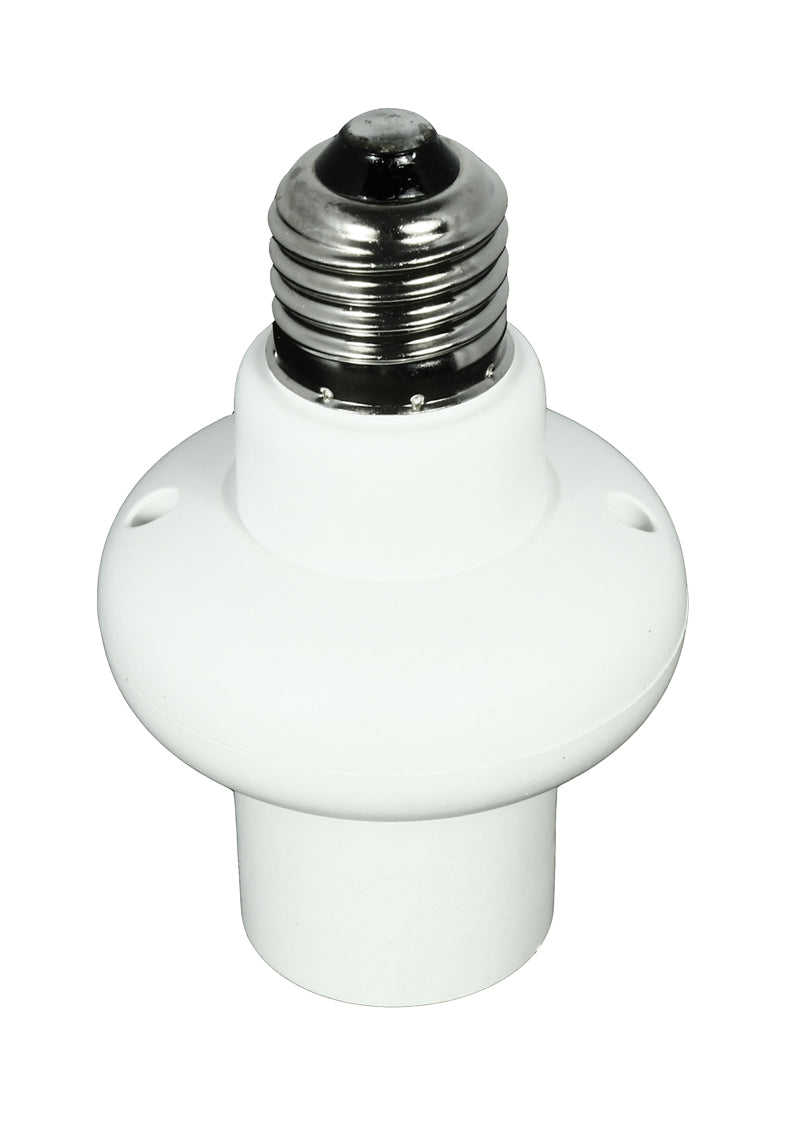

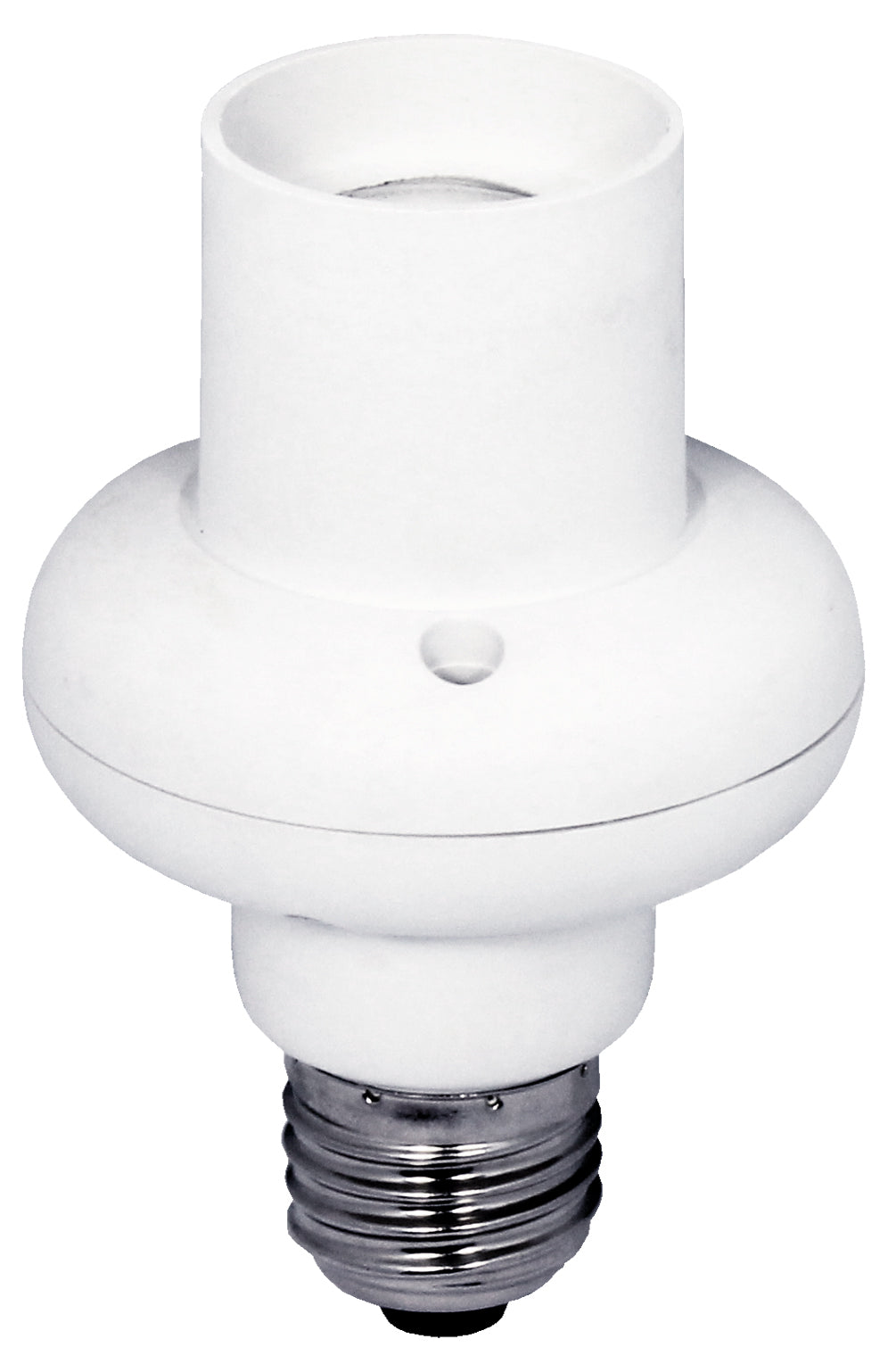

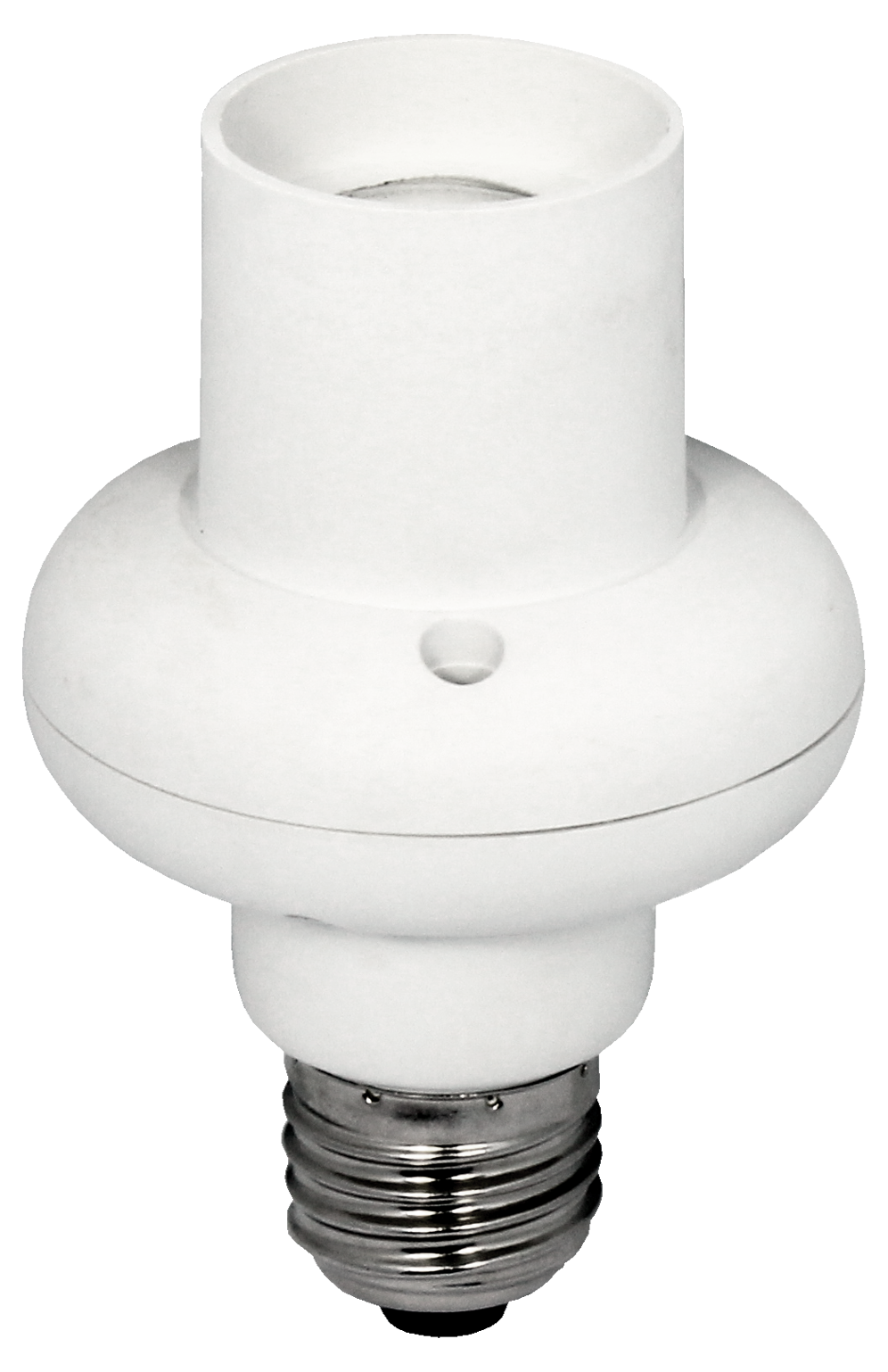

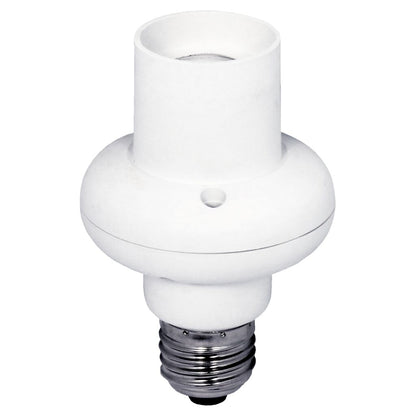

E27 lampholder with EcoSavers Automatic Light Microwave Sensor

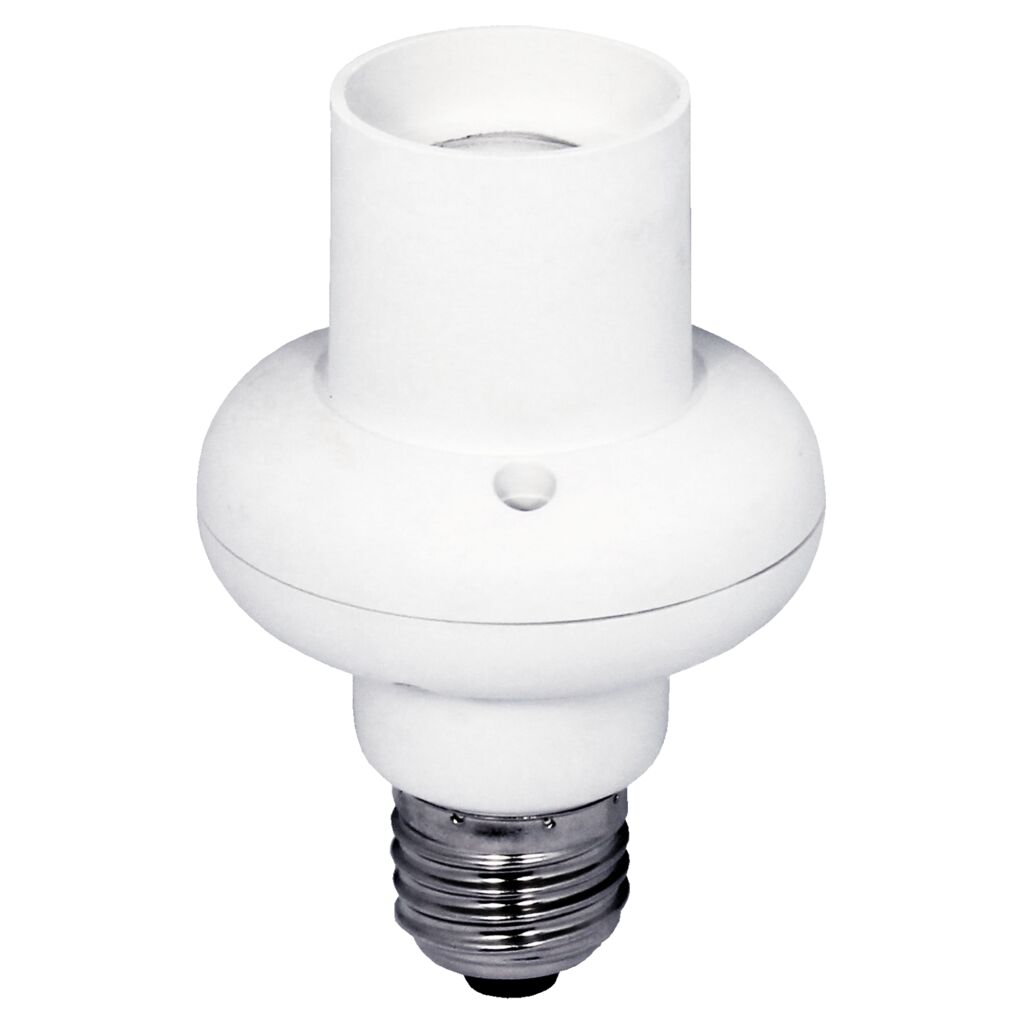

Intelligent E27 Lamp Holder with Microwave Motion and Twilight Sensor

Are you fed up with unnecessary light in the corridor, basement, garage or staircase? This intelligent E27 lampholder is a simple and effective solution that automatically manages lighting, saving energy and your money. It uses advanced microwave technology to reliably detect motion and turns on the light only when needed - and only after dark!

Main Features and Benefits of Microwave Sensor Holder:

• Automatic Energy Saving: No more wasting electricity! The lampholder automatically turns off the connected bulb after the set time since the last detection of motion (smooth adjustment from 15 seconds to 5 minutes), significantly reducing electricity consumption.
• Advanced Microwave (Radar) Sensor: Works differently than standard infrared (PIR) sensors. Microwave technology, like radar, precisely detects movement in a 360-degree radius around the frame. Importantly, microwave waves penetrate non-metallic materials such as lamp shades, glass, thin doors or lightweight partitions, providing reliable detection where PIR may fail.

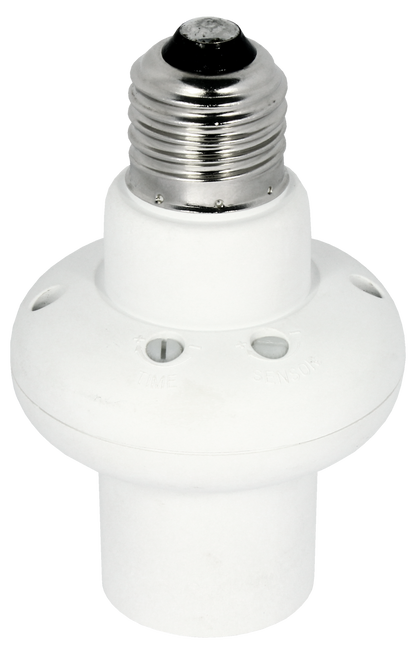

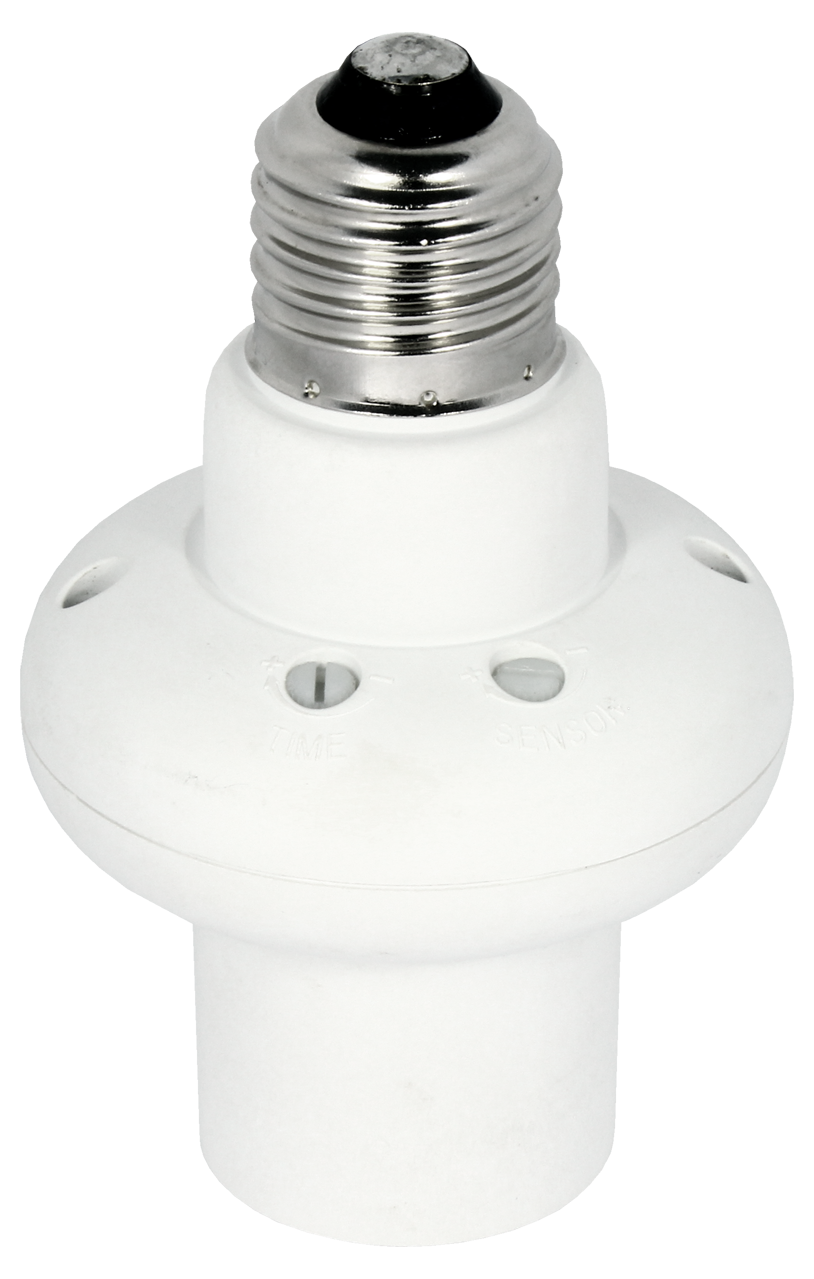

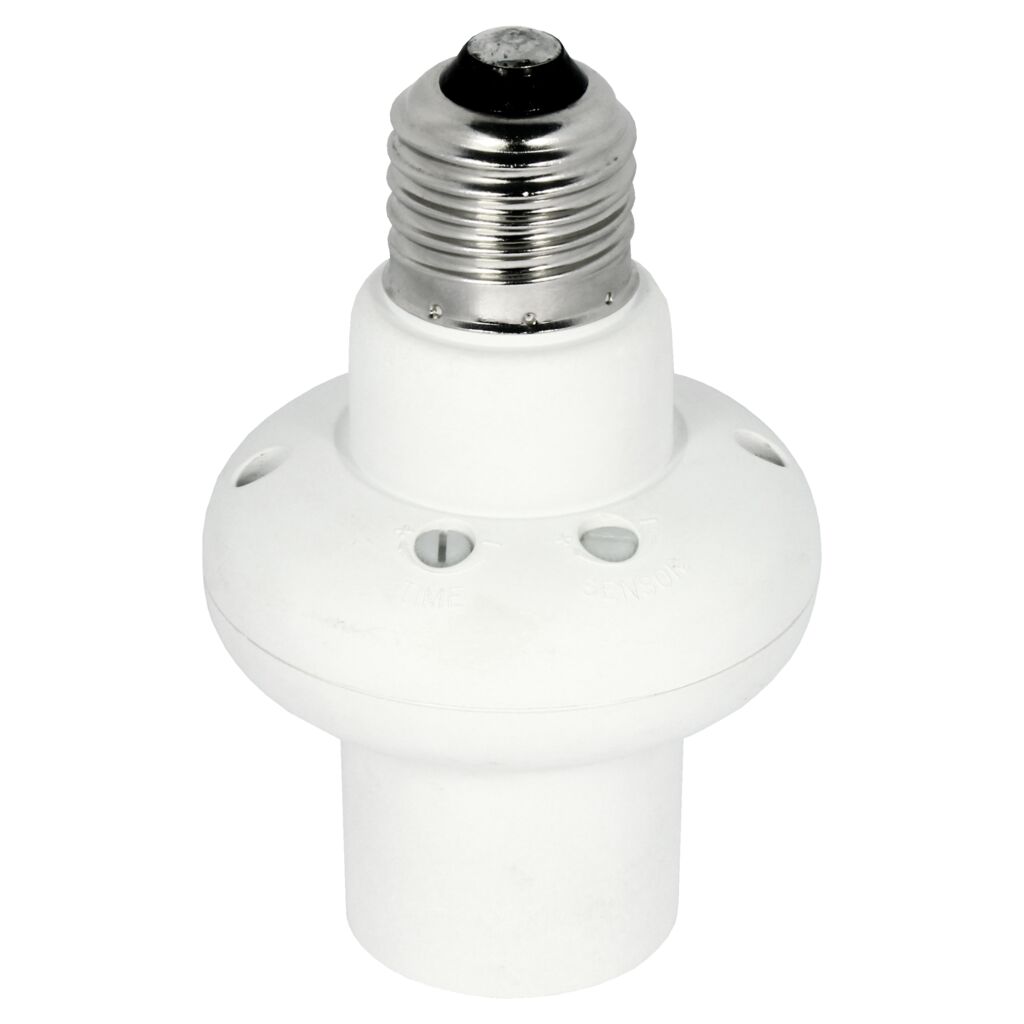

• Full Settings Adjustment: Adjust the sensor operation perfectly to your needs! Using a small screwdriver, you can precisely set:
  • Motion detection range (SENSOR): Adjustable from 3 to 7 meters.
  • Lighting time (TIME): Adjustable from 15 seconds to 5 minutes after the movement stops.
• Built-in Twilight Sensor: Intelligent operation prevents unnecessary turning on of the light during the day. The socket activates the connected bulb only when the ambient light intensity drops below 10 lux.
• Very Simple Installation (Plug & Play): Installation does not require any modifications to the electrical installation or specialized tools. Simply turn off the fuses, screw the smart socket into the existing E27 socket (like a regular light bulb), and then screw the E27 bulb into the socket. Ready for action!
• Universality of the E27 Standard: The socket fits the most popular E27 thread standard in Poland and Europe. It can be used with most bulbs available on the market:
  • Traditional incandescent bulbs (up to 60W)
  • Energy-saving compact fluorescent lamps (CFL) (up to 20W)
  • Modern LED bulbs (up to 20W)

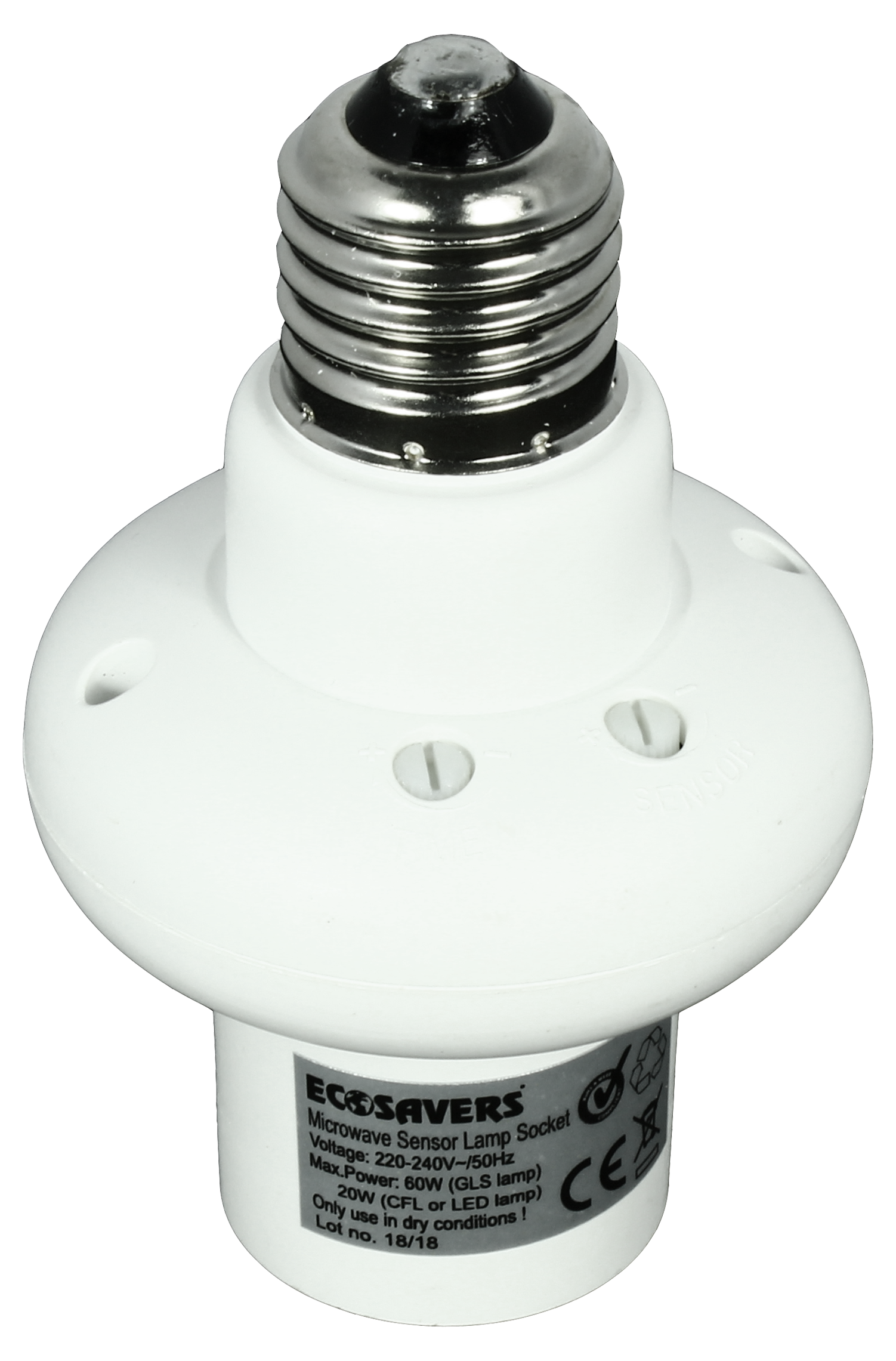

Technical Specification:

• Supply voltage: AC 220-240V / 50Hz
• Socket/thread type: E27 (bulb holder and base)
• Maximum load: Traditional bulb: 60W, CFL/LED bulb: 20W
• Sensor technology: Microwave (HF Radar, frequency 2.8 GHz)
• Detection angle: 360 degrees
• Detection range: Adjustable, 3 - 7 meters
• Time Delay adjustment: Yes, smooth adjustment 15 seconds - 5 minutes
• Daylight Sensor: Yes, built-in (activation threshold < 10 Lux)
• Recommended installation height: 2 - 3.5 meters
• Dimensions: approx. 68 mm (diameter) x 108 mm (height)
• Intended use: For internal use

Important Information and Safety Rules:

• Before starting installation or adjustment, always turn off the power supply to the given lighting point using the appropriate fuse.
• The product is intended for indoor use only and is not resistant to moisture or weather conditions.
• Do not install the frame in bathrooms, shower cabins, saunas or other places with constantly high air humidity.
• Never exceed the maximum loadgiven in the specifications (60W for incandescent bulbs, 20W for CFL/LED bulbs). Using a bulb with too much power may damage the socket or overheat.
• Remember that a working bulb can get very hot. Before unscrewing or screwing it into the socket, wait a few minutes for it to cool down.
