Kinetic Wireless Mini EcoSavers Doorbell Without Batteries

EcoSavers Kinetic Mini Battery-Free Doorbell (Wireless, IPX4)

Tired of constantly replacing the batteries in your wireless doorbell? Are you annoyed when the ringtone goes silent at the most inopportune moment? EcoSavers Kinetic Doorbell Mini is an innovative, compact and extremely practical solution! This modern doorbell uses the fascinating principle ofkinetic energy - the force of your finger pressing the button is converted into electrical energy, which is enough to send a wireless radio signal to a receiver inside the house. This means one thing: no more batteries in the external button - forever! Choose comfort, reliability, economy and ecology in one small device.

How does the Mini Kinetic Doorbell work and why is it worth choosing?

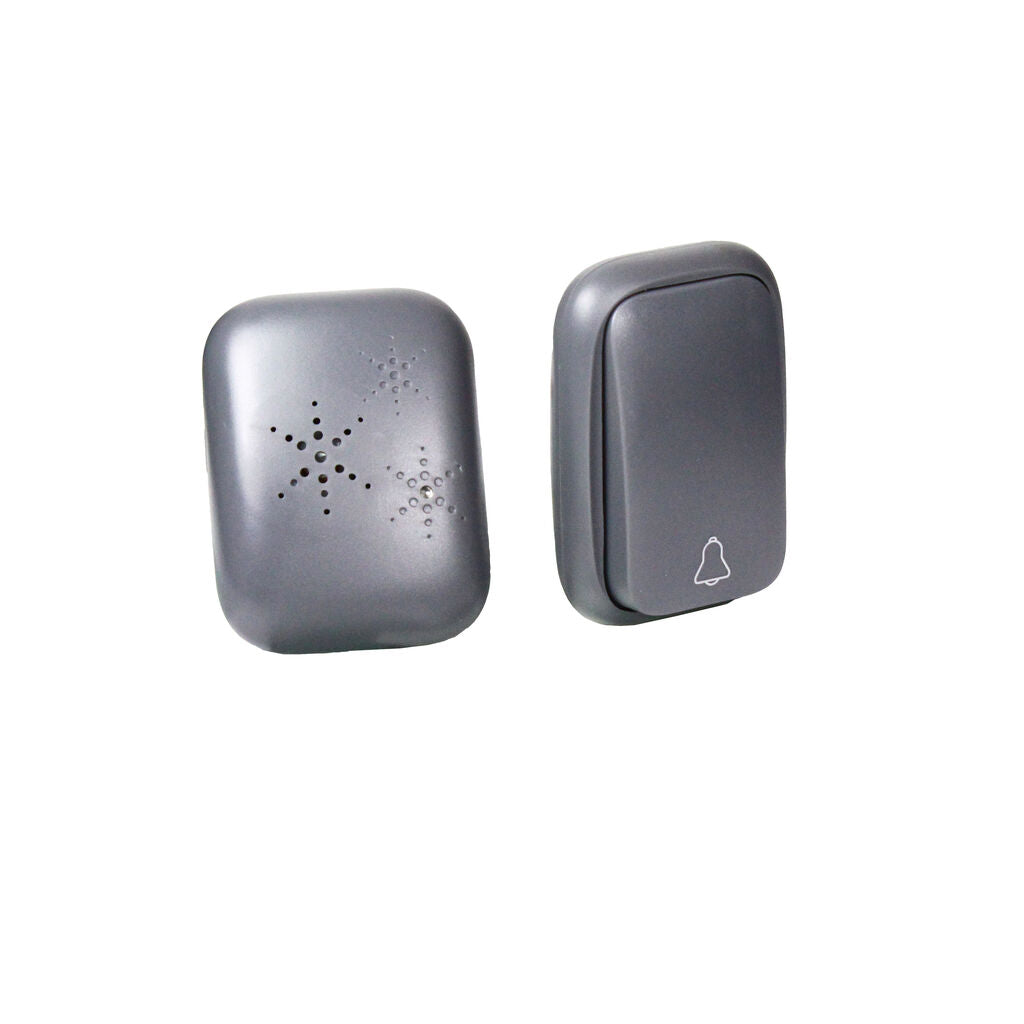

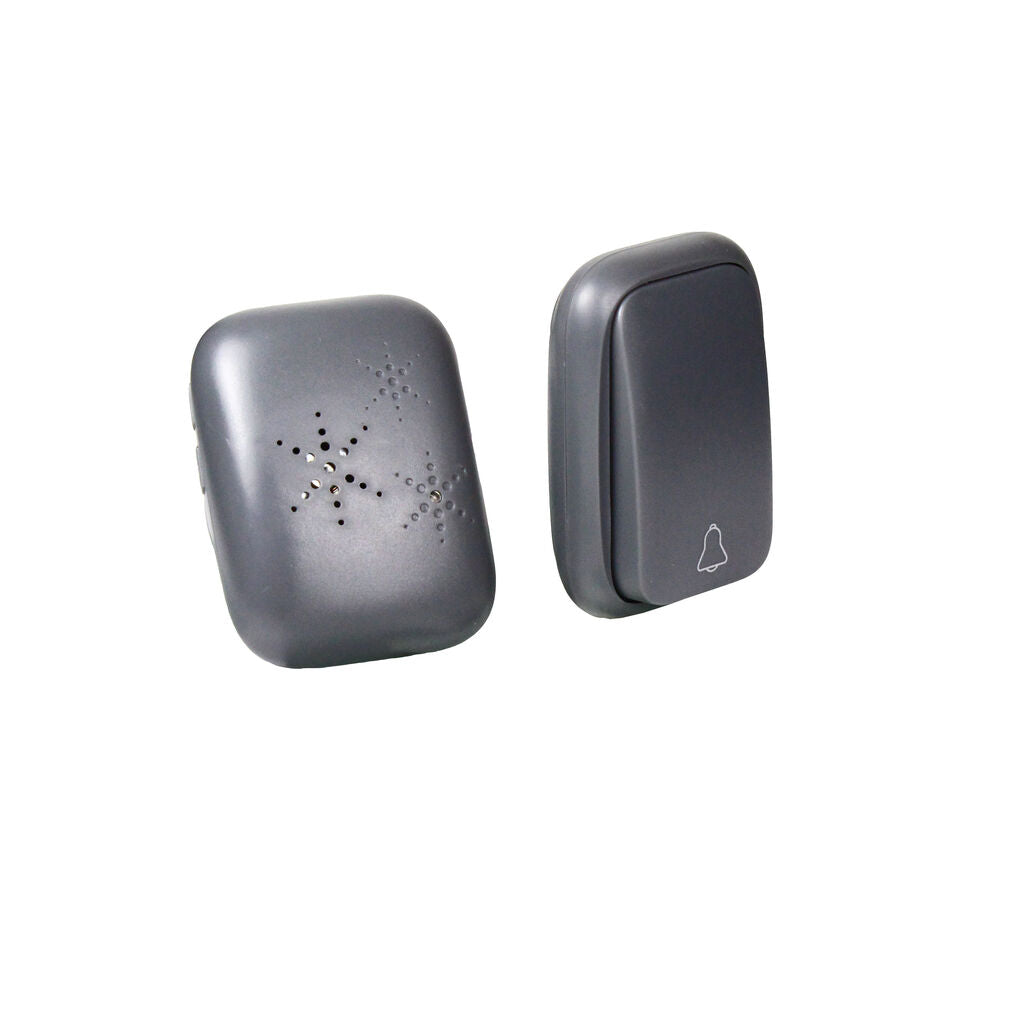

• Fingerprint Powered Button (Transmitter) – No Batteries, No Hassle: The heart of the system is an external button that requires absolutely no battery power or connection to the mains! The built-in precise kinetic mechanism (piezoelectric or electromagnetic) converts the mechanical energy of each press into a small but sufficient electrical impulse. This pulse powers a micro-radio transmitter, which sends a signal to the receiver. Simple, effective and reliable - it works whenever someone presses the button, regardless of the weather (temperature range from -20°C to +60°C).

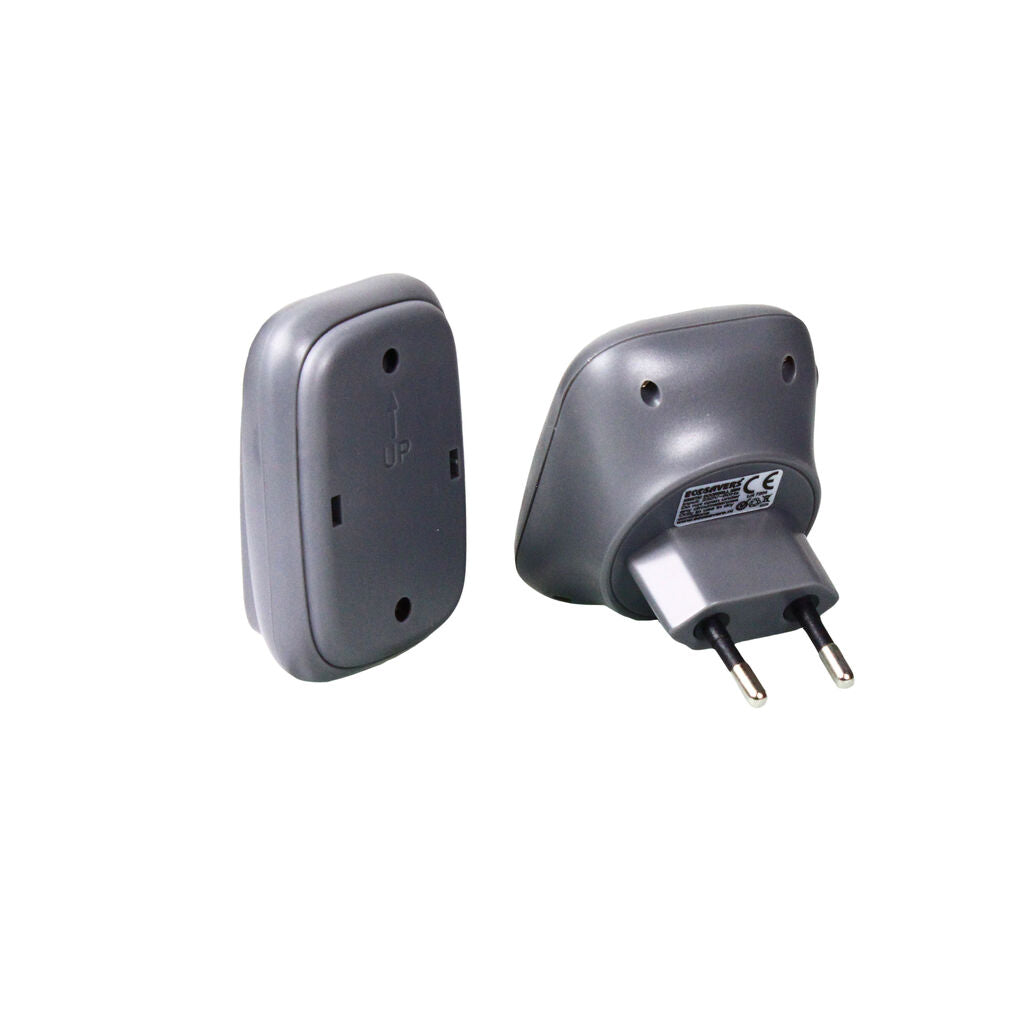

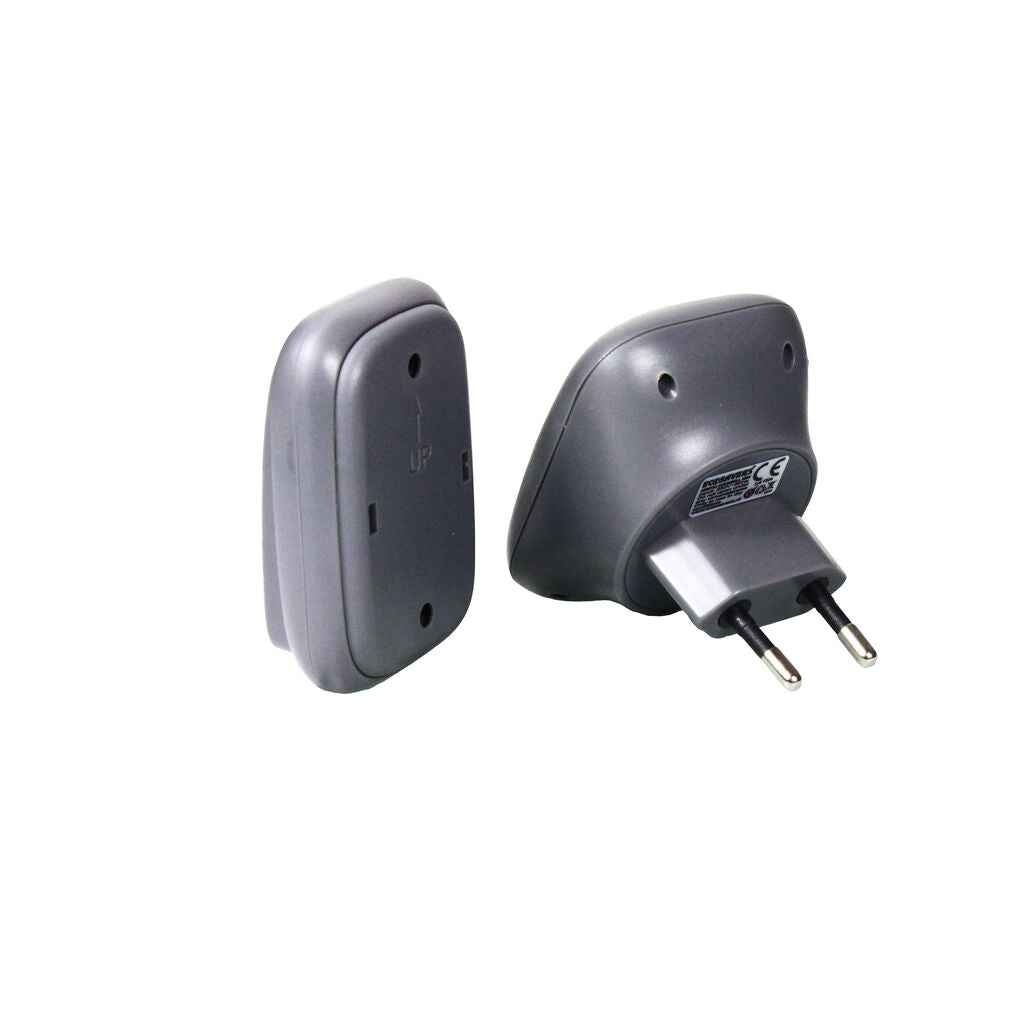

• Compact Receiver Plugged Directly into the Socket: The modern and elegant receiver (indoor unit with speaker and LED) has been designed so that it can be plugged directly into any standard 230V power socket (Type F - Schuko) inside your home. It does not require any additional power supplies, adapters or cables. Importantly, it is characterized by very low power consumption in standby mode (only 0.25W), which makes it a highly energy-saving solution.
• Reliable Wireless Communication and Long Range: The system communicates wirelessly using a stable 433 MHz radio frequency, which ensures a good operating range - up to 150 meters in open space. The signal easily penetrates most walls and doors in typical buildings (the actual range inside the building depends on its structure and the number of obstacles).
• Choose Your Favorite Sound – Up to 38 Different Melodies: You don't have to listen to the standard "ding-dong" anymore! The Kinetic Mini doorbell receiver offers as many as 38 different melodies and sound signals to choose from. Using the dedicated button on the receiver housing, you can easily browse and select the sound that suits you best or suits the occasion.
• Volume Control and Practical Silent Mode (Visual): Adjust the ringtone volume to your needs and the conditions in your home! The receiver allows you to select one of 3 volume levels. Additionally, a completely silent mode is available, in which instead of sound, only the clearly blinking LED on the receiver is activated - this is an ideal solution when a small child is sleeping at home, during an important online meeting or for people with hearing impairments.
• External Button Resistant to Adverse Weather Conditions (IPX4): You don't have to worry about rain, snow or splashes! The transmitter (bell button) has an IPX4 protection class, which means it is resistant to splashes of water from any direction. Can be safely mounted outdoors.
• Ecological and Extremely Economical Solution: Eliminating batteries in the transmitter is not only convenient, but above all a benefit for the environment (less electronic waste) and your wallet (no costs of purchasing batteries). Combined with minimal energy consumption by the receiver, the kinetic bell is one of the most economical and nature-friendly bell solutions available on the market.

Technical Specification:

• Transmitter (Button) Technology: Kinetic (mechanical energy converted into electrical energy), battery-free
• Transmitter (Button) Power Supply: No power required
• Transmitter protection class: IPX4 (splash resistance)
• Transmitter operating temperature range: -20°C to +60°C
• Power supply for the Receiver (Indoor Unit): Directly from the 230V AC / 50Hz mains socket (Type F Plug - Schuko)
• Receiver power consumption in standby mode: 0.25 W
• Receiver operating temperature range: -10°C to +45°C
• Communication: Wireless, radio (RF)
• Transmission frequency: 433 MHz
• Transmission range: Up to 150 meters (in open space)
• Number of available melodies: 38
• Volume control: Yes (3 levels + silent mode with LED visual indication)
• Visual indication on the receiver: Yes (LED)
• Pairing: Unique codes (prevents interference), pairing possible (according to instructions)

Installation and Basic Operation:

• Transmitter (Button) Installation: Choose a suitable place outside near the door or gate. Thoroughly clean and dry the mounting surface. Attach the transmitter using the strong double-sided tape included in the kit or, if you prefer and it is possible, using small screws (check the contents of the kit). Try to avoid mounting directly on large metal surfaces (e.g. metal doors, posts), which may slightly weaken the range of the radio signal.
• Connecting the Receiver: Insert the receiver into any easily accessible power socket (Type F - Schuko) inside the house or apartment, in the place where you want to hear the doorbell signal well.
• Melody Selection: After connecting the receiver to the power supply, briefly press the melody selection button (usually indicated by a musical note icon or similar) to scroll through the available sounds. The last played melody will be automatically remembered as the active one.
• Volume Control: Briefly press the volume button (usually marked with a speaker icon or +/-) to toggle between available volume levels and silent mode (LED only).
• Testing and Pairing (if necessary): Typically, the kit comes pre-paired and ready to use. To test, simply press the transmitter button - the receiver should immediately chime with the selected melody and/or flash the LED. If the doorbell does not respond, it may be necessary to pair (connect) the transmitter with the receiver - read the detailed instructions included with the product on how to do this (usually this involves holding the pairing or melody selection button on the receiver for a few seconds and then pressing the transmitter button).
